ON《NL17SZ74USG》Flip Flops 1.65-5.5V CMOS Single D-Type

Manufacturer

ON Semiconductor

Manufacturer Part

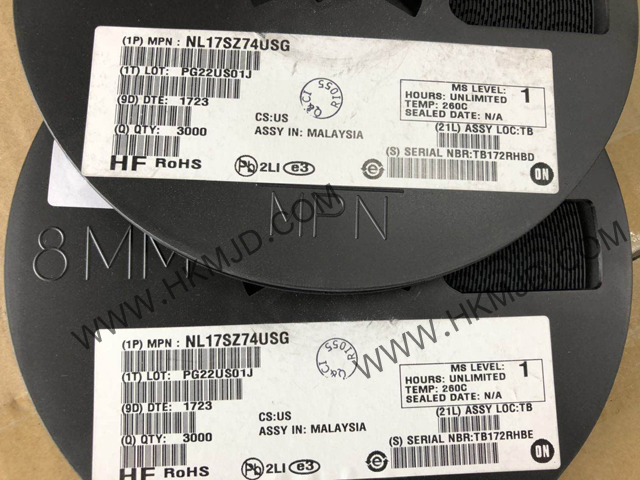

NL17SZ74USG

Description

Flip Flops 1.65-5.5V CMOS Single D-Type

Application

The NL17SZ74 is a high performance, full function Edge triggered D Flip Flop

Datasheet

NL17SZ74

Details


Manufacturer:ON Semiconductor

Product Category:Flip Flops

RoHS: Details

Number of Circuits:1

Logic Family:17

Logic Type:D-Type Flip-Flop

Polarity:Inverting/Non-Inverting

Input Type:Single-Ended

Output Type:Differential

Propagation Delay Time:7 ns

High Level Output Current:- 32 mA

Low Level Output Current:32 mA

Supply Voltage - Min:1.65 V

Supply Voltage - Max:5.5 V

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 85 C

Mounting Style:SMD/SMT

Package / Case:US8-8

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Function:D-Type

Height:0.8 mm

Length:2.1 mm

Quiescent Current:1 uA

Series:NL17SZ74

Width:2.4 mm

Brand:ON Semiconductor

Number of Channels:1 Channel

Number of Input Lines:1

Number of Output Lines:1

Operating Supply Voltage:1.65 V to 5.5 V

Product Type:Flip Flops

Reset Type:Set, Reset

Factory Pack Quantity:3000

Subcategory:Logic ICs

Unit Weight:0.001058 oz

Part # Aliases:NL17SZ74USG
