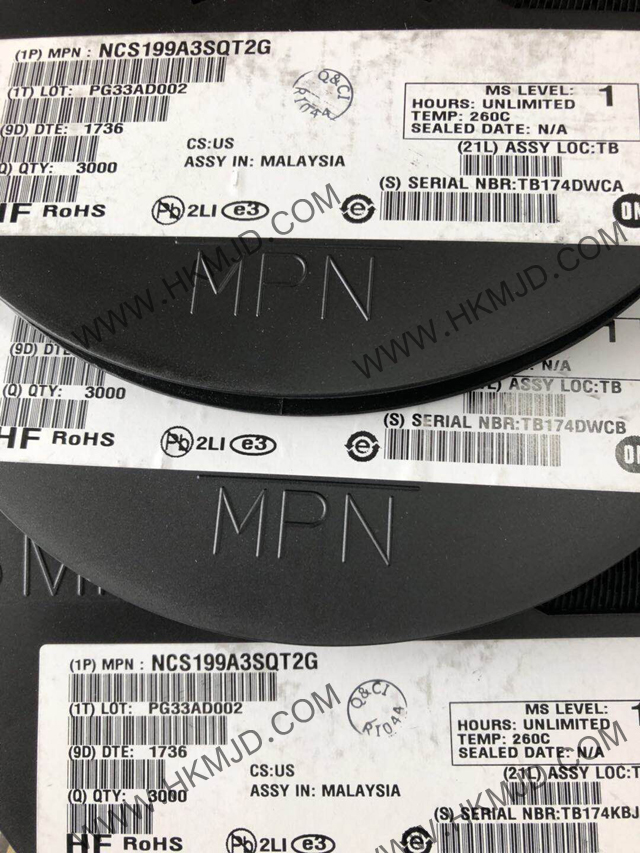

ON《NCS199A3SQT2G》Current Sense Amplifiers Current Sense Amplif

Manufacturer

ON Semiconductor

Manufacturer Part

NCS199A3SQT2G

Description

Current Sense Amplifiers Current Sense Amplif

Application

Current Sensing (High−Side/Low−Side)

Automotive

Telecom

Sensors

Datasheet

NCS199

Details


Manufacturer:ON Semiconductor

Product Category:Current Sense Amplifiers

RoHS: Details

Number of Channels:1 Channel

GBP - Gain Bandwidth Product:40 kHz

Vcm - Common Mode Voltage:- 300 mV to 26 V

CMRR - Common Mode Rejection Ratio:100 dB

Ib - Input Bias Current:60 uA

Vos - Input Offset Voltage:5 uV

Supply Voltage - Max:26 V

Supply Voltage - Min:2.7 V

Operating Supply Current:65 uA

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 125 C

Mounting Style:SMD/SMT

Package / Case:SC-70-6

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Amplifier Type:Current Shunt Monitor

Input Type:Rail to Rail

Output Type:Rail to Rail

Product:Current Sense Amplifiers

Brand:ON Semiconductor

Shutdown:No Shutdown

Topology:Current Shunt Feedback

3 dB Bandwidth:40 kHz

en - Input Voltage Noise Density:35 nV/sqrt Hz

Gain Error:0.2 %

Gain V/V:200 V/V

Product Type:Current Sense Amplifiers

PSRR - Power Supply Rejection Ratio:100 nV/V

SR - Slew Rate:0.4 V/us

Factory Pack Quantity:3000

Subcategory:Amplifier ICs

Unit Weight:0.000988 oz

Part # Aliases:NCS199A3SQT2G
