LCDA05 through LCDA24 Low Capacitance TVS Diode Array

Description

LCDA05 through LCDA24 Low Capacitance TVS Diode Array  For High-Speed Data

The LCDA series of TVS arrays are designed to protect

sensitive electronics from damage or latch-up due to

ESD and other voltage-induced transient events. Each

device will protect two high-speed lines. They are

available with operating voltages of 5V, 12V, 15V and

24V. They are bidirectional devices and may be used on

lines where the signal polarities are above and below

ground.

TVS diodes are solid-state devices designed specifically

for transient suppression. They offer desirable characteristics

for board level protection including fast response

time, low operating and clamping voltage and

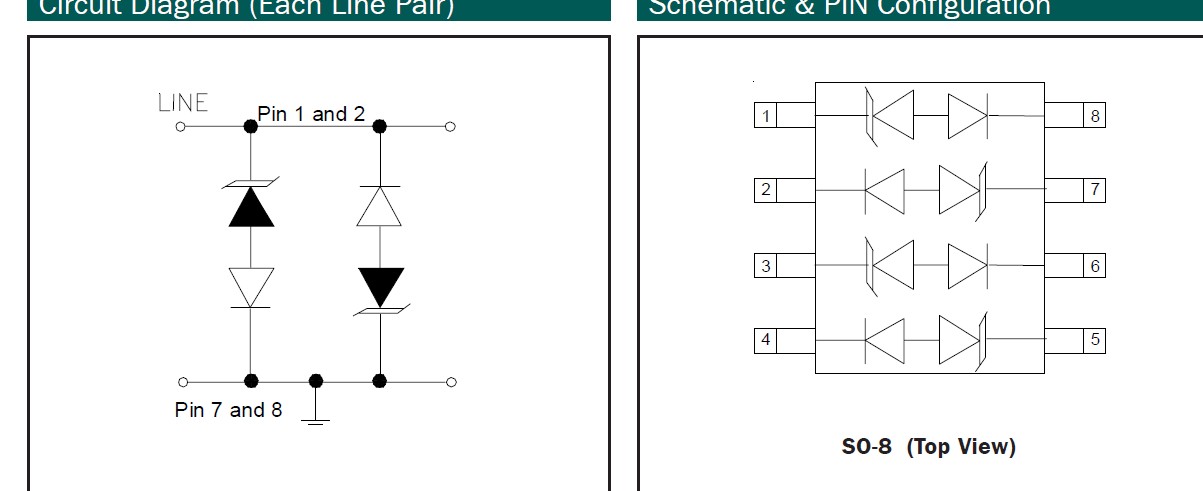

no device degradation. The LCDA series devices

feature low capacitance compensation diodes in series

with standard TVS diodes to provide an integrated, low

capacitance solution for use on high-speed interfaces.

The LCDA series devices may be used to meet the

immunity requirements of IEC 61000-4-2, level 4.

Features

Transient protection for high-speed data lines to

IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-5 (lightning) (8/20μs)*

 Protects two I/O lines

 Low capacitance for high-speed data lines

 Working voltages: 5V, 12V, 15V and 24V

 Low leakage current

 Low operating and clamping voltages

 Solid-state silicon avalanche technology

Mechanical Characteristics
