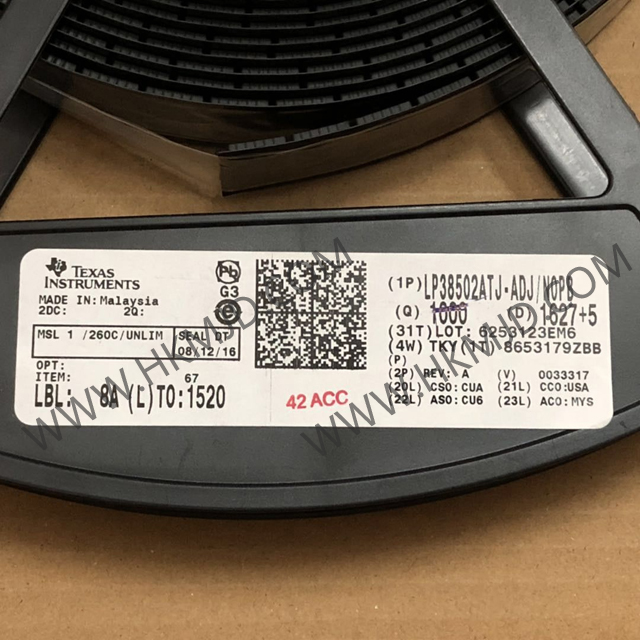

LP38502ATJ-ADJ LP38502 LDO Voltage Regulators

Manufacturer

Texas Instruments

Manufacturer Part

LP38502ATJ-ADJ

Description

LDO Voltage Regulators 1.5A FlexCap LDO Linear Reg

Application

DSP and FPGA Power Supplies

PART NUMBER PACKAGE BODY SIZE (NOM)

DDPAK/TO-263 (5) 10.16 mm x 8.42 mm

Datasheet

LP38502

Details


Manufacturer:Texas Instruments

Product Category:LDO Voltage Regulators

RoHS: Details

Mounting Style:SMD/SMT

Package / Case:TO-263-5

Output Voltage:600 mV to 5 V

Output Current:1.5 A

Number of Outputs:1 Output

Polarity:Positive

Input Voltage MAX:5.5 V

Input Voltage MIN:2.7 V

Output Type:Adjustable

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 125 C

Dropout Voltage:220 mV

Series:LP38502-ADJ

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Operating Temperature Range:- 40 C to + 125 C

Product:LDO Linear Regulators

Tolerance:1.5 %

Type:LDO Linear Regulator

Brand:Texas Instruments

Dropout Voltage - Max:0.275 V at 1.5 A

PSRR / Ripple Rejection - Typ:58 dB

Voltage Regulation Accuracy:+/- 1.5 %

Line Regulation:0.04 %/V

Load Regulation:0.18 %/A

Operating Supply Current:2 mA

Product Type:LDO Voltage Regulators

Factory Pack Quantity:1000

Subcategory:PMIC - Power Management ICs

Unit Weight:0.044100 oz

Part # Aliases:LP38502ATJ-ADJ
