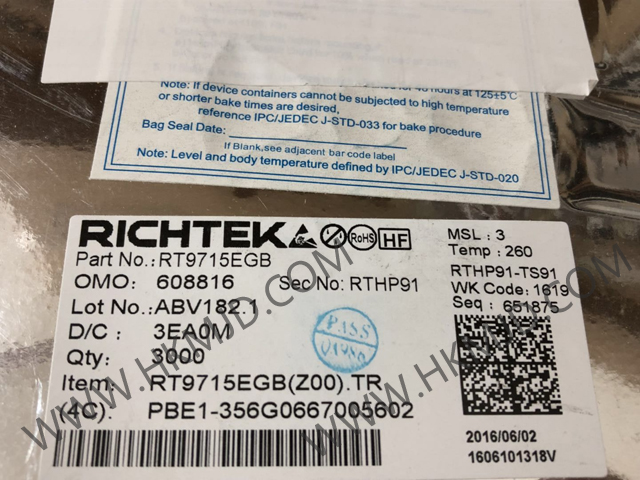

Richtek《RT9715EGB RT9715》Power Switch/Driver 1:1 N-Channel 1.1A SOT-23-5R

Manufacturer

Richtek

Manufacturer Part

RT9715EGB

Description

IC PWR SWTCH N-CHAN 1：1 SOT23-5R

Application

USB Peripherals

Notebook PCs

Datasheet

RT9715

Details


Manufacturer:Richtek USA Inc.

Series -

Packaging:Tape & Reel (TR)

Part Status:Obsolete

Switch Type:USB Switch

Number of Outputs:1

Ratio - Input:Output:1:1

Output Configuration:High Side

Output Type:N-Channel

Interface:On/Off

Voltage - Load 2.7V ~ 5.5V

Current - Output (Max):1.1A

Rds On (Typ)：90mOhm

Input Type：Non-Inverting

Features：Load Discharge, Status Flag

Fault Protection：Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

Operating Temperature：-40°C ~ 100°C (TJ)

Mounting Type：Surface Mount

Supplier Device Package：SOT-23-5R

Package / Case：SC-74A, SOT-753

Part # Aliases:RT9715EGB
