ON《NCP1200P100G》Switching Controllers 100KHz Current Mode SMPS PWM

Manufacturer

ON Semiconductor

Manufacturer Part

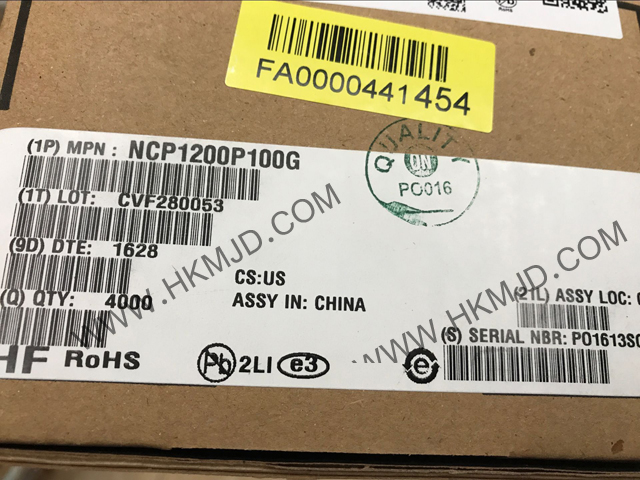

NCP1200P100G

Description

Switching Controllers 100KHz Current Mode SMPS PWM

Application

AC−DC Adapters

Offline Battery Chargers

Auxiliary/Ancillary Power Supplies (USB, Appliances, TVs, etc.)

Datasheet

NCP1200P100G

Details


Manufacturer:ON Semiconductor

Product Category:Switching Controllers

RoHS: Details

Topology:Flyback, Forward

Number of Outputs:1 Output

Switching Frequency:103 kHz

Duty Cycle - Max:80 %

Output Current:250 mA

Maximum Operating Temperature:+ 150 C

Mounting Style:Through Hole

Package / Case:PDIP-8

Packaging:Tube

Series:NCP1200

Type:Current Mode PWM Controllers

Brand:ON Semiconductor

Fall Time:28 ns

Operating Supply Voltage:16 V

Product Type:Switching Controllers

Rise Time:67 ns

Factory Pack Quantity:50

Subcategory:PMIC - Power Management ICs

Unit Weight:0.032805 oz

Part # Aliases:NCP1200P100G
