Features
• UL Certified No. E209204 (UL1557)
• 600 V - 30 A 2-Phase Bridgeless PFC with Integral
Gate Driver and Protection
• Very Low Thermal Resistance Using Al2O3 DBC
Substrate
• Built-in NTC Thermistor for Temperature Monitoring
• Built-in Shunt Resistor for Current Sensing
• Optimized for 20kHz Switching Frequency
• Isolation Rating: 2500 Vrms/min.
Applications
• 2-Phase Bridgeless PFC Converter
General Description
The FPDB30PH60 is a PFC SPM® 3 module providing a
fully-featured, high-performance Bridgeless PFC (Power
Factor Correction) input power stage for consumer,
medical, and industrial applications. These modules
integrate optimized gate drive of the built-in IGBTs to
minimize EMI and losses, while also
providing multiple on-module protection features
including under-voltage lockout, over-current shutdown,
thermal monitoring, and fault reporting. These modules
also feature high-performance output diodes and shunt
resistor for additional space savings and mounting
convenience.

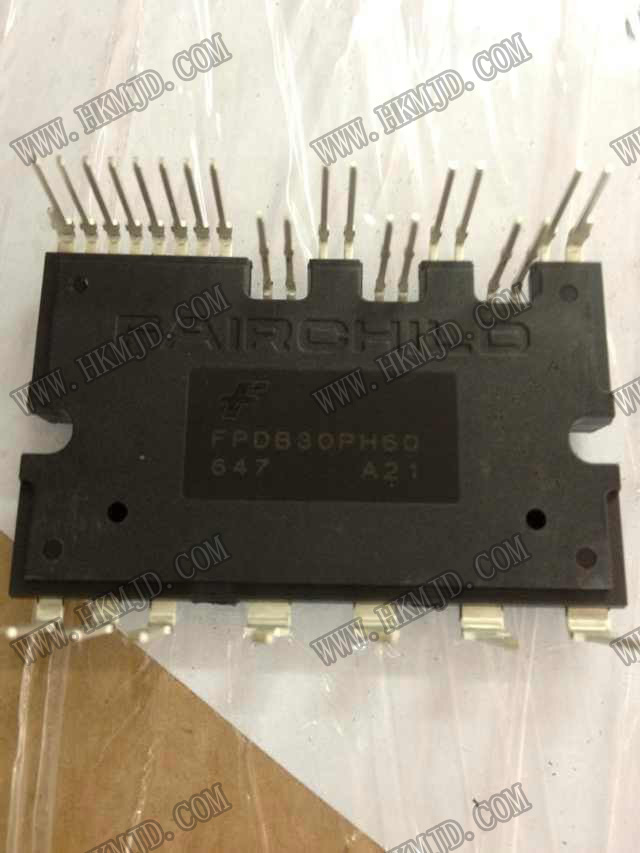

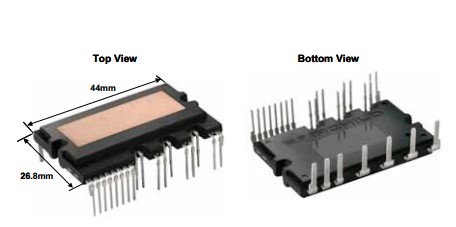

Photo:
