Shenzhen Mingjiada Electronics Co., Ltd. distributes MPQ5031GRE-0013-AEC1-Z MPQ5031GRE single port USB PD controller only original, reasonable price, quality assurance, stock in stock, call for consultation!

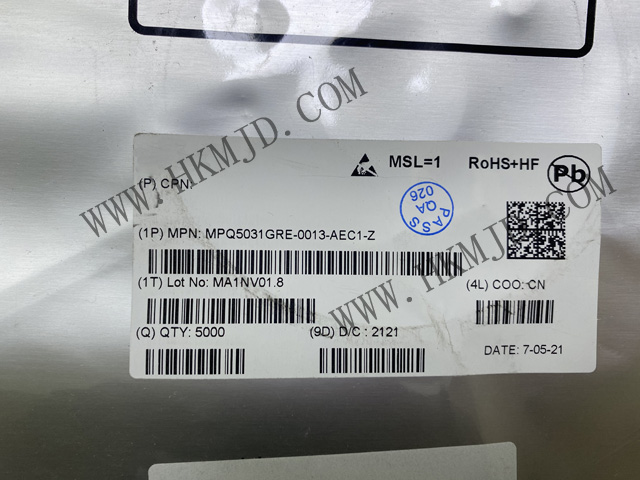

Model: MPQ5031GRE-0013-AEC1-Z
Year: 21+
Package: QFN
Description: MPQ5031 single port USB PD controller for charging only, AEC-Q100 qualified.
Details: The MPQ5031 is a USB Type-C 2.0 and USB PD 3.0 compliant USB Power Delivery (PD) controller designed for DFP applications such as charging-only USB PD ports and USB hubs.
The device is backward compatible with Quick Charge 3.0 (QC3.0), Battery Charging Specification (BC1.2), Apple Divider mode, Huawei Fast Charge Protocol (FCP), and dedicated charging port (DCP) solutions such as 1.2V/1.2V mode , without user intervention from the outside. It also supports BC1.2 Charge Data Port (CDP) handshake. The I2C interface and GPIO pins provide good communication between the device and an external power converter.
MPQ5031 supports PD power supply up to 100W and supports Programmable Power Supply (PPS). It flexibly configures the Power Delivery Data Object (PDO) list, selects slave devices, configures charging protocols, and sets protection modes.
The device provides two NTC pins for monitoring abnormal temperature rise, such as monitoring the temperature on a USB Type-C socket or on a PCB. The power sharing feature enables intelligent power budget management between the two USB PD ports; when the car battery voltage is low, the PDO capacity is reduced. High voltage I/O pins are used to support short-to-battery protection and short-to-VBUS protection for DC/DC converters.
The MPQ5031 is packaged in a QFN-20 (4mmx4mm) package with tin-plated sides.
The advantages are as follows:
Supports USB PD 3.0 and PPS
Wide VBUS Voltage Range from 3.3V to 21V
Up to 100W USB-IF PPS certified
I2C master/slave interface and interrupt function
Load shedding with NTC or low battery detection
External MOSFETs provide desaturation and shoot-through protection
Compact QFN-20 (4mmx4mm) package with tin side
AEC-Q100 qualified
