Shenzhen Mingjiada supplies MP2162AGQH MP2162AGQH-Z step-down switching regulator, only original, quality assurance, the price is subject to the consultation on the day Welcome to contact us
Brand: MPS

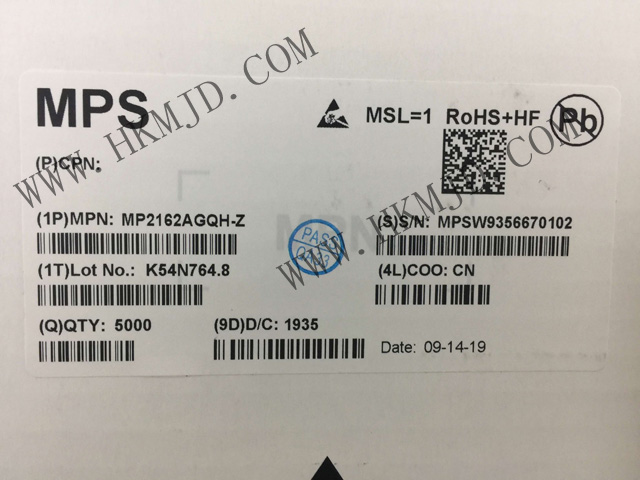

Model: MP2162AGQH-Z
Package: QFN-8
Describe
The MP2162A is a monolithic step-down built-in switch-mode converter power MOSFET. It achieves an output current of 2A from a continuous 2.5V to 6V input voltage with excellent load and line regulation. This output voltage can be adjusted down to 0.6V. The constant on-time control scheme provides fast transient response and simplifies loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.
The MP2162A comes in small QFN-8 (2.0x1.5mm), TQFN-8 (2.0x1.5mmx0.75mm) and UTQFN-8 (2.0mmx1.5mmx0.55mm) packages and requires only a minimum number of readily available, standard, external components.
Ideal for a variety of applications including high performance DSPs, FPGAs, PDAs and portable instruments.
Specification
Function Buck
output configuration positive
Topology Buck
output type adjustable
Number of outputs 1
Voltage - Input (min) 2.5V
Voltage - Input (Max) 6V
Voltage - Output (min/fixed) 0.6V
Voltage - Output (max) 6V
Current - Output 2A
Frequency - Switching 1.5MHz
Synchronous Rectifier Yes
Operating temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package/Case 8-VFDFN
Vendor Device Package 8-QFN (2x1.5)
Application
Wireless/NIC
Portable Instruments
Battery powered devices
Low voltage I/O system power
