Mingjiada supply TLE7269G full version transceiver 2/2 LIN PG-DSO-14, new and original, interested parties are welcome to contact, E-mail:sales@hkmjd.com

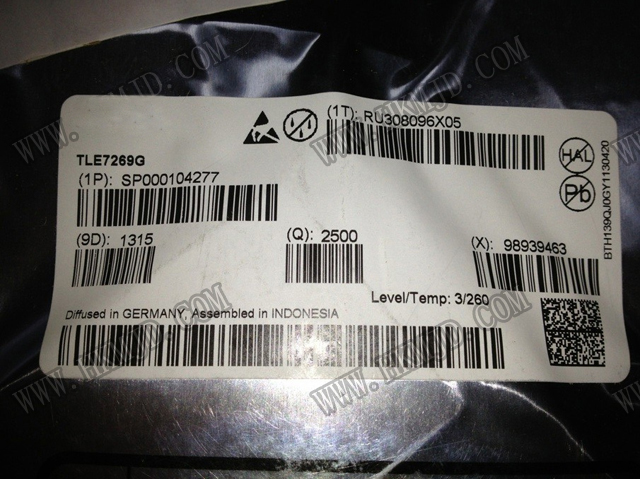

Model: TLE7269G
Brand: Infineon
DC: 14+
Package: SOP
TThe TLE7269G is a Local Interconnect Network (LIN) transceiver feature with integrated wake-up and protection functions. It is suitable for in-vehicle networks with data transfer rates from 2.4 kaud to 20 kaud. Acts as a bus driver between the protocol controller and the physical bus within the LIN network. Compliant with all LIN standards and with a broad operating supply range, the TLE7269G can be used in all automotive applications.
Characteristic
• 2 independent LIN transceivers with transfer rates up to 20kaud
• Pin compatible with a single LIN transceiver (eg TLE7259-2GE/GU)
• Compliant with LIN Specifications 1.3, 2.0, 2.1 and SAE J2602
• Very high ESD robustness, ±8kv according to IEC61000-4-2
• Low Electromagnetic Emission (EME) optimization
• Anti-electromagnetic interference (EMI) optimization
• Extremely low current consumption in sleep mode with wake-up function
• Wake-up source detection function
• Very low bus output leakage current
• Control output of the voltage regulator
• Digital I/O level compatible with 3.3 V and 5 V microcontrollers
• Bus short to VBAT protection and bus short to GND handling
• Over temperature and under voltage protection
• Flash Mode and Low Slope Mode
• Green product (RoHs compliant)
