Part Number |
Brief Description |
Type | Pins |
RoHS Status |
D/C | Package / Case |
LM293ADT | Low Power Dual Voltage Comparators | SOP | 8 PINS | ROHS | 13+ | 2500PCS/CASE |
MC9S08QE8CTG | 8-Bit HCS08 Central Processor Unit | TSSOP | 16 PINS | ROHS | 13+ | 96PCS/CASE |
PDF datasheet:
MC9S08QE8CTG LM293ADT
Description :

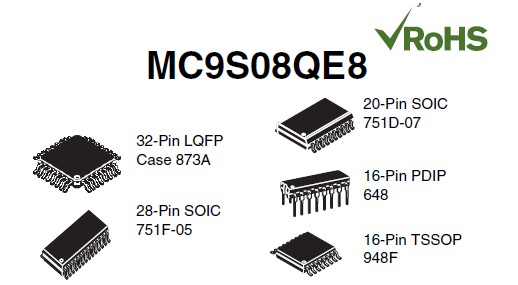

MC9S08QE8 Series
Covers: MC9S08QE8 and MC9S08QE4
8-Bit HCS08 Central Processor Unit (CPU)
– Up to 20 MHz CPU at 3.6 V to 1.8 V across temperature range of
–40 °C to 85 °C
– HC08 instruction set with added BGND instruction
– Support for up to 32 interrupt/reset sources
• On-Chip Memory
– Flash read/program/erase over full operating voltage and
temperature
– Random-access memory (RAM)
– Security circuitry to prevent unauthorized access to RAM and
flash contents
• Power-Saving Modes
– Two low power stop modes
– Reduced power wait mode
– Low power run and wait modes allow peripherals to run while
voltage regulator is in standby
– Peripheral clock gating register can disable clocks to unused
modules, thereby reducing currents
– Very low power external oscillator that can be used in stop2 or
stop3 modes to provide accurate clock source to real time counter
– 6 μs typical wake-up time from stop3 mode
