TLP2361 15Mbps Photocouplers offer a high-output GaAℓAs light-emitting diode coupled with integrated high gain, high-speed photodetectors. They are housed in the SO6 package. These photocouplers guarantee operation at up to 125°C and on supplies from 2.7V to 5.5V. Because the TLP2361 has guaranteed 1mA low supply current (ICCL/ICCH) and 1.6mA (Ta = 125°C) low threshold input current (IFHL), it contributes to the energy saving of devices. It can drive directly from a microcomputer for a low input current.
TLP2361 15Mbps Photocouplers have an internal Faraday shield that provides a guaranteed common-mode transient immunity of ±20kV/μs. Typical applications are factory networking, high-speed digital interfacing for instrumentation and control devices, and I/O interface boards.

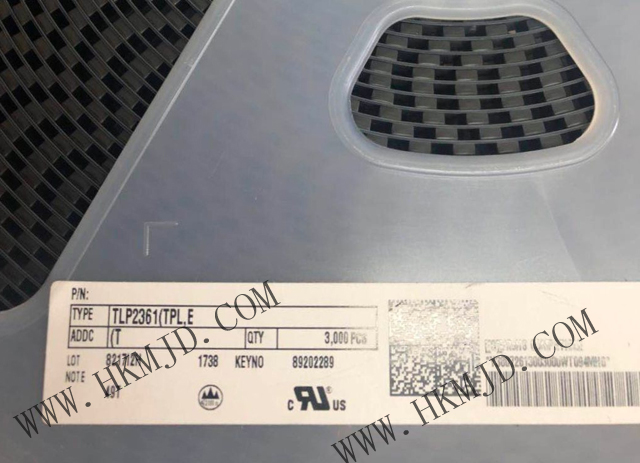

Mingjiada Sells Toshiba Optocouplers TLP2361(TPL.E(T T TLP2361 15MBd Push-Pull / Totem Pole 3750Vrms 1 Channel
Model: TLP2361(TPL.E(T TLP2361
Batch size: 17+
Package: SOP5
Type: Photocoupler
Features
(1) Inverter logic type (Totem pole output)
(2) Package: SO6 (3) Operating temperature: -40 °C to 125 °C
(4) Supply voltage: 2.7 to 5.5 V
(5) Data transfer rate: 15 MBd (typ.) (NRZ)
(6) Threshold input current: 1.3 mA (max) (@T a = 105 °C )
: 1.6 mA (max) (@T a = 125 °C )
(7) Supply current: 1.0 mA (max)
(8) Common-mode transient immunity: ±20 kV/ µs (min)
(9) Isolation voltage: 3750 Vrms (min)
(10) Safety standards
UL-approved: UL1577, File No.E67349
cUL-approved: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN60747-5-5 (Note 1)
CQC-approved: GB4943.1, GB8898 Thailand Factory
