Shenzhen Mingjiada Electronics supply transistor output photocoupler VOM617A-8X001T 3750Vrms 1-channel 4-SOP, new and original, price advantage, real single has accepted price can be discussed in detail, welcome to consult!
The VOM617A low input current SOP-4 photocouplers provide GaAs infrared emitting diodes optically coupled to silicon planar phototransistor detectors. These phototransistor output optocouplers are available in a compact SOP-4 mini-flat package, saving 30% PCB space compared to a DIP-4 package. These devices also feature a high current transfer ratio, low coupling capacitance and high isolation voltage. Rated at 110ºC, the devices also offer a low input current of 5mA and can be selected from up to nine different current transfer ratios (CTR) ranging from 40% to 600%, which provides designers with greater flexibility. These coupling devices are designed for signal transfer between two electrically separated circuits.

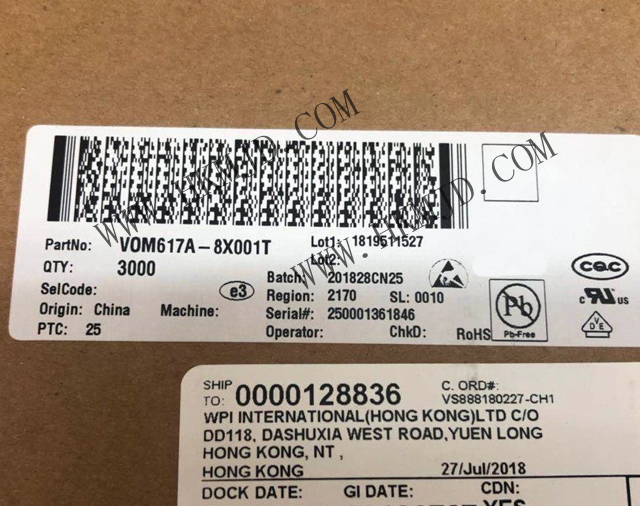

Model: VOM617A-8X001T
Brand: VISHAY
Year: 18+
Package: SOP4
Specifications.
Number of channels 1
Voltage - Isolated 3750Vrms
Current Transfer Ratio (min) 130% @ 5mA
Current Transfer Ratio (Max) 260% @ 5mA
On/Off time (typical) 6µs, 4µs
Rise/fall time (typical) 3µs, 3µs
Input type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output/Channel 50mA
Voltage - Forward (Vf) (Typ.) 1.1V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation Drop (Max) 400mV
Operating Temperature -55°C ~ 110°C
Mounting Type Surface Mount Type
Package / Housing 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Applications
PLC
Telecom
Lighting control systems
Solar inverters
AC drives
