STM32H7 High Performance MCUs STM32H743BIT6 32-bit Single-Core ARM Microcontrollers - MCU

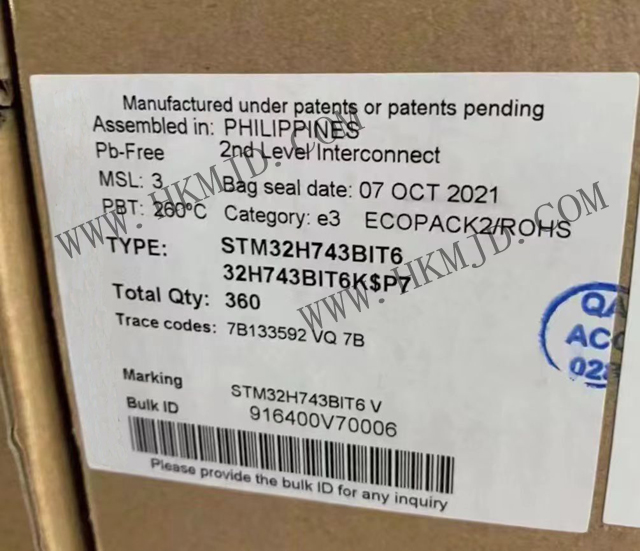

Mingjiada supplies in-stock STM32H7 high performance MCU STM32H743BIT6 32-bit single core ARM microcontroller - MCU, new and original, if you need, welcome to contact Mr. Chen,
The STM32H7 high performance MCU is based on the high performance Arm® Cortex®-M7 32-bit RISC core operating at up to 400MHz.The Cortex-M7 core features a floating point unit (FPU) precision and supports Arm double precision (IEEE 754 compliant) and single precision data processing instructions and data types.The STM32H7 MCU supports a full set of DSP instructions and a memory protection unit ( MPU) for enhanced application security.
The MCU features high-speed embedded memory with up to 2MB of dual-zone Flash, 1 MB of RAM (including 192 KB of TCM RAM, 864 KB of user SRAM and 4 KB of backup SRAM). In addition, the device features a variety of enhanced I/O and peripherals connected to the APB bus, AHB bus, 2x32-bit multi-AHB bus matrix, and a multi-layer AXI interconnect supporting internal and external memory access.
Product type: STM32H743BIT6
Batch: Latest 21+
Package: LQFP208
Family: STM32H7
Product Type: ARM Microcontrollers - MCU
Core: ARM Cortex M7
Program memory size: 2 MB
Data bus width: 32 bit
ADC resolution: 3 x 16 bit
Maximum clock frequency: 400 MHz
Number of inputs/outputs: 168 I/O
Data RAM size: 1 MB
Supply voltage - min: 1.62 V
Supply voltage - max: 3.6 V
Min. operating temperature: - 40 C
Max. operating temperature: + 85 C
DAC resolution: 12 bit
Data Ram type: RAM
I/O voltage: 1.62 V to 3.6 V
Interface types: CAN, I2C, SAI, SDIO, SPI, USART, USB
Number of ADC channels: 20 channels
Program memory type: Flash
Number of factory packages: 360
Watchdog Timer: Watchdog Timer, Windowed
Unit weight: 2.240 g
