Mingjiada supply in stock TCR5AM series TCR5AM10 low dropout voltage regulator 6V 500mA CMOS point regulator, new and original.
The TCR5AM 500mA CMOS ultra-low dropout voltage regulator is a CMOS single output regulator with an on/off control input. It has an ultra-low dropout voltage, low inrush current and fast load transient response. It is capable of driving currents of up to 500mA. Other features include over-current protection, over-temperature protection, under-voltage lockout and an automatic discharge function.
The TCR5AM series is available in an ultra-compact plastic moulded package DFNB5 (1.2x1.2x0.38mm). The devices are ideal for portable applications requiring high density board assembly, such as cellular phones.

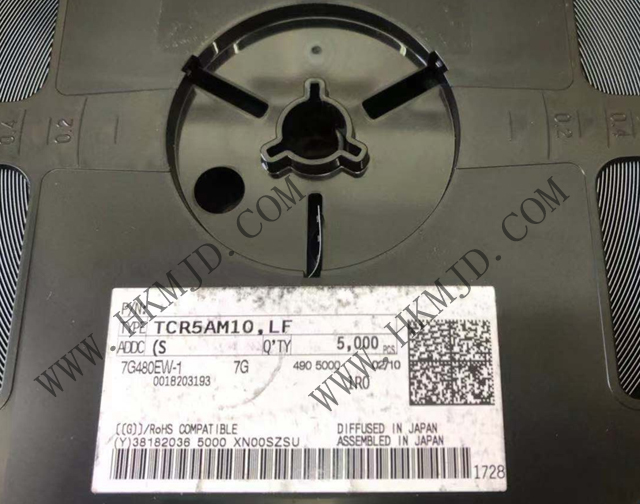

Product type: TCR5AM10, TCR5AM10,LF
Year: 1728+
Series: TCR5AM
Description：IC REG LINEAR 1V 500MA 5DFNB
Product Specification
Output Configuration Positive
Output Type Fixed
Number of regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) -
Voltage Drop (Max) 0.25V @ 500mA
Current - Output 500mA
Current - Static (Iq) 55 µA
Current - Supply (Max) 68 µA
PSRR 70dB ~ 40dB (1kHz ~ 10Hz)
Control features Enabled
Protection Features Overcurrent, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature -40°C ~ 85°C (TJ)
Mounting Type Surface Mount Type
Package/Case 4-XDFN Exposed Pad
Supplier Device Package 5-DFNB (1.2x1.2)
