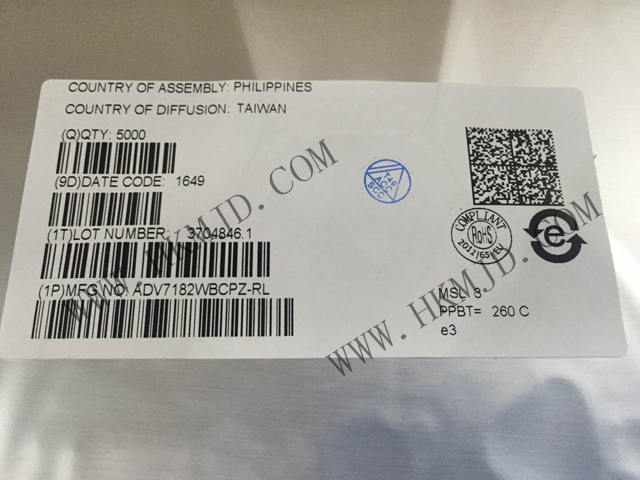

Shenzhen Mingjiada Electronics Co., Ltd. supplies the new and original ADI video processing ADV7182 ADV7182WBCPZ 10-bit, SDTV video decoder with differential input
Product Details
The ADV7182 automatically detects standard analog baseband video signals compatible with global NTSC, PAL and SECAM standards and converts them into a 4:2:2 component video data stream. The video data stream is compatible with the 8-bit ITU-R BT.656 interface standard.
The ADV7182 is programmed via a two-wire serial bi-directional port (I2C® compatible) and is manufactured using a 1.8 V CMOS process. The single-chip CMOS architecture ensures more functionality at lower power consumption. The decoder is available in an LFCSP package option and is suitable for space-constrained portable applications.
The ADV7182 is a versatile, single-chip, multi-format video decoder capable of automatically detecting PAL, NTSC and SECAM standard signals in composite, S-video and component video formats. The device is ideal for automotive applications as it can receive composite signals in single-ended or differential mode.
The ADV7182 converts these analogue video formats to 8-bit ITU-R BT.656 digital video streams.
The digital video output stream of the ADV7182 can be easily interfaced with a wide range of MPEG encoders, codecs, mobile video processors and ADI's digital video encoders such as the ADV7391. External HS, VS and FIELD signals provide timing references for LCD controllers and other video ASICs.
Product Attributes
Manufacturer Analog Devices Inc.
Series Automotive
Packaging Pallets
Product Status On Sale
Function Decoder
Applications Consumer Video
Standards ITU-R BT.656, NTSC, PAL, SECAM
Control Interface I²C, Serial
Voltage - Supply 1.71V ~ 1.89V
Mounting Type Surface Mount
Package/Case 32-WFQFN Exposed Pad, CSP
Supplier Device Package 32-LFCSP (5x5)
Product Applications
Automotive infotainment systems
DVRs for video security
Media players
