Supply TI Original Chip [TPA3100D2PHP] 20W Stereo Class D Audio Amplifier
Product Details:
The TPA3100D2PHP is a 20W stereo, analogue input Class D audio amplifier for driving bridged stereo speakers.The TPA3100D2PHP can drive stereo speakers down to 4Ω. The device is 92% efficient and does not require an external heat sink when playing music.The gain of the TPA3100D2PHP is controlled by two gain select pins. Gain select ranges are 20, 26, 32, and 36 dB.
Package: HTQFP-48
Type: Class D Audio Amplifier
TPA3100D2PHP Product Diagram:
TPA3100D2PHP Product Features:
20W stereo, analogue inputs
Maximum output power x number of channels at varying loads: 21.8W x 2 @ 8 ohms
Operating voltage range of 10V to 26V
92% efficient Class D operation, no heat sink required
Four selectable fixed gain settings: 20, 26, 32, and 36 dB
Features: differential inputs, mute, short-circuit and thermal protection, shutdown
Thermal and short-circuit protection with auto-recovery
Clock output for synchronisation with multiple Class D devices
Operating temperature range of -40°C to 85°C (TA)
Surface-mount 9 mm × 9 mm, 48-pin HTQFP package

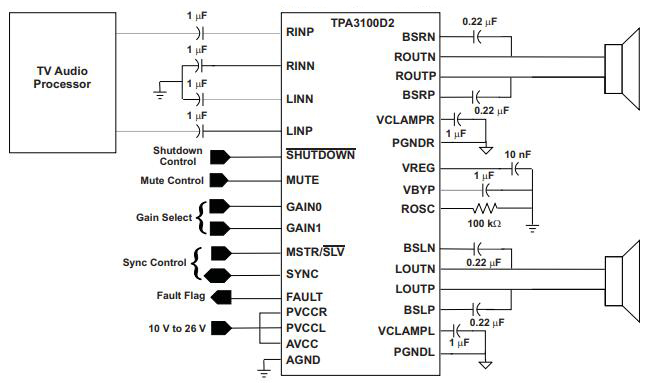

TPA3100D2PHP Simplifies application circuitry:
[Mingjiada Electronics] Long term supply of TI (TPA3100D2PHP) Class D Audio Amplifiers with outputs featuring auto-recovery and supervisory outputs that are fully protected against ground shorts, VCC shorts, and output-to-output short circuits.
