MPQ4242GVE-0000-AEC1: A 5A, 36V, fully integrated USB PD solution with integrated buck-boost converter, compliant with EC-Q100 certification
Product Details
MPQ4242GVE-0000-AEC1 is a fully integrated power supply (PD) solution suitable for USB Type-C power ports. It integrates a buck-boost converter with four power switches and a USB PD controller. The MPQ4242GVE-0000-AEC1 can support a continuous output current (IOUT) of up to 5A within a certain range of input power supply voltages.
The USB Type-C port of MPQ4242GVE-0000-AEC1 supports USB PD R3.0 with programmable power Supply (PPS). And it is backward compatible with the dedicated charging port (DCP) solutions of the battery charging specification (BC 1.2), 3A divider mode and 1.2V/1.2V mode. The MPQ4242GVE-0000-AEC1 also supports QC 2.0/3.0 and Huawei FCP mode.
The MPQ4242GVE-0000-AEC1 provides a configurable PD power management status machine to deal with situations such as low battery voltage (VBATT) or overheating. When two MPQ4242-AEC1 ports are used as dual PD ports, their internal power-sharing logic can effectively allocate the total power.
The fault protection functions of MPQ4242GVE-0000-AEC1 include: short-circuit protection from I/O pins to BUS and VIN pins, CC overcurrent protection (OCP), hiccup mode current limiting protection, output overvoltage protection (OVP), and over-temperature shutdown protection.
The MPQ4242GVE-0000-AEC1 only requires a small number of existing standard external components, adopts the QFN-22 (4mmx5mm) package, and complies with the EC-Q100 grade 1 certification.
Its main features and advantages:
MPQ4242GVE-0000-AEC1 is an integrated USB power supply (PD) solution suitable for automotive power supply ports
Integrated 4-switch buck-boost converter
Integrate PD 3.0 controller
Wide input operating voltage (VIN) range from 4.8V to 36V
Output voltage range (VOUT) from 3.3V to 22.5V
Precise output CC current limit: ±5%
The external MOSFET (HS-FET) can operate in parallel
The USB Type-C has a low quiescent current (IQ) when disconnected.
Configurable frequencies of 250kHz/420kHz, with spectrum expansion function
Support USB Type-C V2.0
Supports USB PD R3.0, V2.0 and programmable power (PPS) with a list of 7 power data objects (PDO)
Support QC 3.0 specification and Huawei FCP
Support DCP schemes for BC1.2, 3A Divider mode and 1.2V/1.2V mode
Short-circuit protection of VBUS/VBATT by CCx, DP and DM
Battery to ground short-circuit protection driver
I2C slave interface
Output line voltage drop compensation
Configurable PD power management is available to handle low battery voltage or high temperature conditions
Support dual-port PD power sharing
An LED driver with adjustable pulse width modulation (PWM) duty cycle
The closing delay of EN can be as long as 120 minutes
It adopts the QFN-22 (4mmx5mm) package with tin plating on the side
It complies with the AEC-Q100 level 1 certification

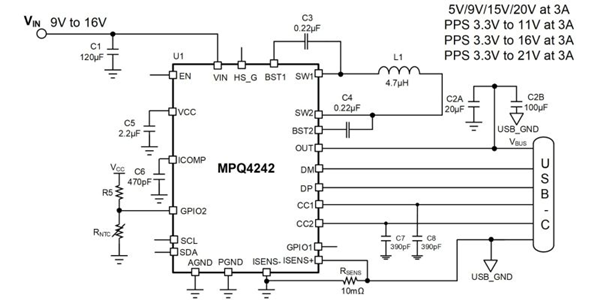

Typical applications
USB power supply charging port
USB power supply
The performance parameters of MPQ4242GVE-0000-AEC1
Voltage - Input: 4.8V to 36V
Output number: 1
Voltage - Output: 3.3V to 22.5V
Operating temperature: -40°C to 150°C (TJ)
Grade: Automotive grade
Qualification: AEC-Q100
Installation type: Surface mount, wettable side wings
Package/Shell: 22-PowerVFQFN
