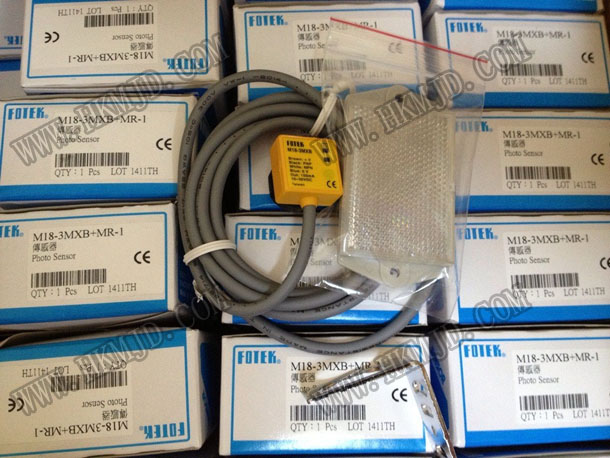

イメージセンサー M18-3MX M18-3MXB 丸い鏡の反射

Type

Mirror Reflex

Model

M18-3MX

M18-3MXB

Output Status

NO

NC

Sensing Distance

3M

Operating Voltage

10-30VDC ; Ripple ﹤20% of P-P

Operating Current

20mA

Output Method

NPN / PNP Two Output

Output Current

150mA Max.

Residual Voltage

0.8V Max.

Leakage Current

0.8mA Max.

Protection Circuit

Short Circuit & Polarity Reversed Protection

Response Time

1ms

Sensitivity Adjuster

NON

Hysteresis

20% of Sensing Distance Max.

Illumination

Lamplight ﹤10,000Lux ; Sunlight ﹤20,000Lux

Lead Wire

4￠5.0×φ2M

Housing Material

Intensive ABS

Operating Temp. /Hum.

-20°C ~ +60°C ; 35% ~ 85% RH

Protection Class

IP-67
