AR0237SRSC12SHRA0-DR: CMOS image sensor, 2.1MP, 1/2.7-inch
Introduction
The AR0237SRSC12SHRA0-DR is a 1/2.7-inch CMOS digital image sensor with an effective pixel array of 1928 (H) × 1088 (V). It can capture images in linear or high dynamic range modes and is equipped with a rolling shutter reading, which includes complex camera functions such as in-pixel compartments, windowing, as well as video and single-frame modes. The AR0237SRSC12SHRA0-DR is suitable for low-light and high dynamic range scenarios and can be programmed through a simple two-wire serial interface. The AR0237SRSC12SHRA0-DR can generate extremely clear and sharp digital images, and can simultaneously capture continuous video and single-frame images, making it suitable for a variety of applications such as surveillance and high-definition video.
The main features of AR0237SRSC12SHRA0-DR
DR-PIX™ technology with dual conversion gain
Full HD support up to 1080p at 60 fps enables outstanding video performance
Linear or high dynamic range capture
On-chip phase-locked loop (PLL) oscillator
Support line interlaced T1/T2 readout to achieve HDR processing in the ISP chip
Integrate location-based color and lens shadow correction
Subordinate mode for precise frame rate control
Support for stereoscopic /3D cameras
Statistical engine
Four-channel Serial High-Speed Pixel Interface (HiSPi)
Automatic black level calibration
High-speed configurable context switching
Temperature sensor
Application field
Video surveillance
1080p60 (surveillance) video application
High dynamic range imaging
Surveillance camera
Basic parameters
Product: AR0237SRSC12SHRA0-DR
Type: CMOS
Pixel size: 3µm x 3µm
Active pixel array: 1928H x 1088V
Frames per second: 60.0
Voltage - Power supply: -

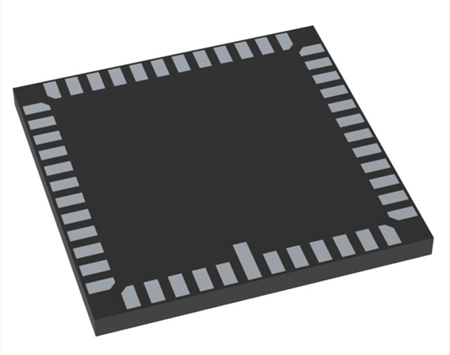

Package/Shell: 48-LCC
Supplier device packaging: 48-mPLCC (11.43x11.43)
