Supply Original IC——Mingjiada Supply ST (STGAP2SCMTR) Isolated Gate Driver

Supply Original IC——Mingjiada Supply ST (STGAP2SCMTR) Isolated Gate Driver


Shenzhen Mingjiada Electronics Co., Ltd.——Long term supply ST (STGAP2SCMTR) single channel, magnetically coupled, isolated gate driver.

Product Details:
Model: STGAP2SCMTR
Package: SOIC-8
Type: Isolated Gate Driver
Product Diagram:

The STGAP2SCMTR is a single-channel gate driver that partially isolates the gate drive channel from the low-voltage control and interface circuitry.The STGAP2SCMTR has a 4A current drive and rail-to-rail outputs, making the device suitable for high-power inverter applications such as motor drives in industrial applications. The input to output propagation delay is within 80 ns and the PWM control is highly accurate.The STGAP2SCMTR can be used in standby mode to reduce power consumption at idle.

STGAP2SCMTR Product Features:
1700 V single-channel gate driver
Driver current capability: 4 A at 25°C
dV/ dt transient immunity ±100 V / ns
Total input - output propagation delay: 80 ns
Separate output states for easy gate drive configuration
Dedicated 4A mille-clamp pins
UVLO function
GATE DRIVE VOLTAGE UP TO 26 V
Hysteretic with 3.3 V, 5 V TTL / CMOS inputs
Temperature shutdown protection
Standby function

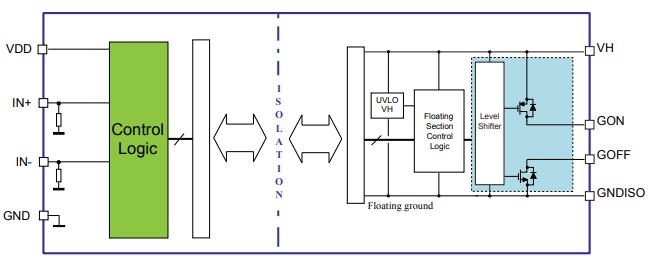

STGAP2SCMTR - Split Output Option (Block Diagram)


STGAP2SCMTR - Applications:
Motor drivers for home appliances, factory automation, industrial drives and fans.
600/1200 V inverters
Battery chargers
Induction heating
Welding
UPS
Power supply units
DC-DC converters
Power factor correction

[Mingjiada Electronics] Long-term supply of STGAP2SCMTR, For product information or price inquiry of Gate Driver STGAP2SCMTR, please contact Mingjiada Electronics:
