【TI 16-bit Microcontroller 】MSP430F5528IRGCR: 25MHz, 128KB Flash, 8KB SRAM MCU

 Introduce the TI MSP430F5528IRGCR 16-bit microcontroller

A 25MHz MCU featuring 128KB fFlash, 8KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB and hardware multiplier



Explanation

The MSP430F5528IRGCR  is an ultra-low power 16-bit microcontroller that can be widely applied in various applications. This architecture, when used in conjunction with multiple low-power modes, is the best choice for extending the battery life of portable measurement applications. The MSP430F5528IRGCR microcontroller features a powerful 16-bit reduced instruction set (RISC) CPU that employs 16-bit registers and a constant generator to achieve the highest encoding efficiency. This numerical control oscillator (DCO) enables the device to wake up from low-power mode to activated mode within 3.5µs (typical value).

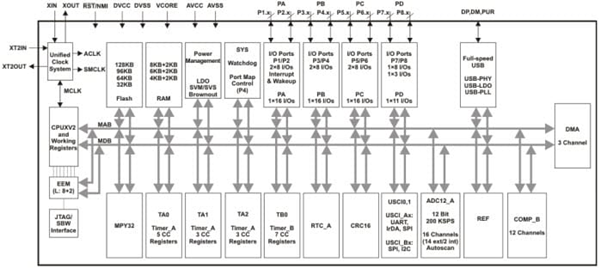

The MSP430F5528IRGCR microcontroller features an integrated USB and PHY that supports USB 2.0, 4 16-bit timers, 1 high-performance 12-bit analog-to-digital converter (ADC), 2 UScis, 1 hardware multiplier, DMA, and 1 RTC with alarm function The module and 47 I/O pins. Its typical applications include analog and digital sensor systems that need to be connected to various USB hosts, data loggers and other applications.

Its main features include:

• Low power supply voltage range: from 3.6V to 1.8V

Ultra-low power consumption

- Activation Mode (AM) :

- All system clocks activated:

At -8 MHz, it is 290µA/MHz, 3.0V, flash memory program execution (typical value)

At -8 MHz, 150µA/MHz, 3.0V, RAM program execution (typical value)

- Standby Mode (LPM3) :

- Crystal real-time clock (RTC), watchdog, power monitor available, full RAM retention, fast wake-up:

It is 1.9µA at -2.2V and 2.1µA at 3.0V (typical values)

-Low-power oscillator (VLO), universal counter, watchdog, power monitor available, full RAM hold, quick wake-up:

At -3.0V, it is 1.4µA (typical value)

- Off Mode (LPM4) :

- Full RAM retention, power monitor available, quick wake-up:

1.1µA at -3.0V (typical value)

- Off Mode (LPM4.5) :

0.18µA at -3.0V (typical value)

Wake up from standby mode within 3.5µs (typical value)

16-bit Reduced Instruction Set computing (RISC) architecture, extended memory, and system clock up to 25MHz

• Flexible power management system

- Built-in programmable low dropout regulator (LDO)

-Power supply voltage monitoring, surveillance and temporary power rationing

• Unified clock system

- Phase-locked loop (FLL) control loop for frequency stability

-Low-power low-frequency internal clock source (VLO)

-Low-frequency trimming internal reference source (REFO)

-32khz watch crystal oscillator (XT1)

- High-frequency crystal oscillator up to 32MHz (XT2)

A 16-bit timer TA0, Timer_A with 5 capture/comparison registers

A 16-bit timer TA1 with 3 capture/comparison registers, Timer_A

A 16-bit timer TA2, Timer_A with 3 capture/comparison registers

16-bit timers TB0 and Timer_B with 7 capture/comparison shadow registers

• Two universal serial communication interfaces

Both USCI_A0 and USCI_A1 support:

The enhanced universal asynchronous transceiver (UART) supports automatic baud rate detection

-IRDA encoding and decoding

- Synchronous Serial Peripheral Interface (SPI)

Both USCI_B0 and USCI_B1 support:

– I2C

- Synchronous Serial Peripheral Interface (SPI)

• Full-speed Universal Serial Bus (USB

-Integrated USB-Physical Layer (PHY)

- Integrated 3.3V and 1.8V USB power supply systems

- Integrated USB-phase-locked loop (PLL)

-8 input and 8 output endpoints

A 12-bit analog-to-digital converter (ADC) with internal reference, sample hold and automatic scanning functions (MSP430F552x only)

Comparator

The hardware multiplier supports 32-bit operations

Programming is done on the serial board without the need for external programming voltage

• 3-channel internal DMA

A basic timer with RTC features

The device comparison summarizes the available series of product members



Application scope

Analog and digital sensor systems

• Data logger

Connect to the USB host



In addition, the MSP430F5528IRGCR also has the following technical parameters:

Core processor: MSP430 CPUXV2

Kernel specification: 16 bits

Speed: 25MHz

Connection capabilities: I2C, IrDA, LINbus, SCI, SPI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

I/O number: 47

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 10K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 12x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Supplier device packaging: 64-VQFN (9x9)
