Supply Original TI (TPS2592ZADRCR) Electronic Fuse - eFuse With Blocking FET Control Function
Shenzhen Mingjiada Electronics Co., Ltd.——Long-term supply of TI (TPS2592ZADRCR) is a 28mΩ, electronic fuse with blocking FET control - eFuse IC, the device uses very few external components and can provide multiple protection modes. They are effective against overloads, short circuits, voltage surges, excessive inrush currents, and reverse currents.
Product Details:
Package: VSON-10
Type: eFuse - eFuse
TPS2592ZADRCR Product Diagram:
TPS2592ZADRCR Applications:
- Hard Disk Drives (HDD) and Solid State Drives (SSD)
- Set-top Boxes
- Server/Auxiliary (AUX) power supplies
- Fan control
- PCI/PCIe cards
- Adapter Power Supply Devices
TPS2592ZADRCR - The current limit level can be set with an external resistor. Applications with special voltage ramp requirements can use a single capacitor to set the dV/dT pin to ensure the proper output ramp rate is achieved.
TPS2592ZADRCR Product Features:
4.5V to 18V voltage protection
Integrated 28mΩ conduction metal-oxide-semiconductor field-effect transistor (MOSFET)
Absolute 20V maximum
1A to 2.1A adjustable current ILIMIT
Reverse-current blocking support
Programmable OUT slew rate, undervoltage lockout (UVLO)
Built-in thermal shutdown
Safe during single point failure testing (UL60950)
Small package size - 10L (3mm x 3mm) ultra-thin, small form factor leadless package (VSON)

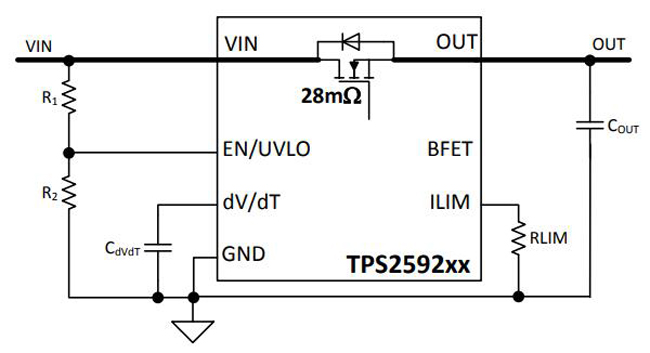

TPS2592ZADRCR Application Circuit Schematic:
