IC DUAL DIFF COMPARATOR 8-SOIC TI LM2903AVQDRQ1 MJD have in stock:
| Part number | Brand | Date | QTY | Package | Remarks |
| LM2903AVQDRQ1 | TI | 14+ROHS | 9900 | SOP-8 |
Original have in stock
|

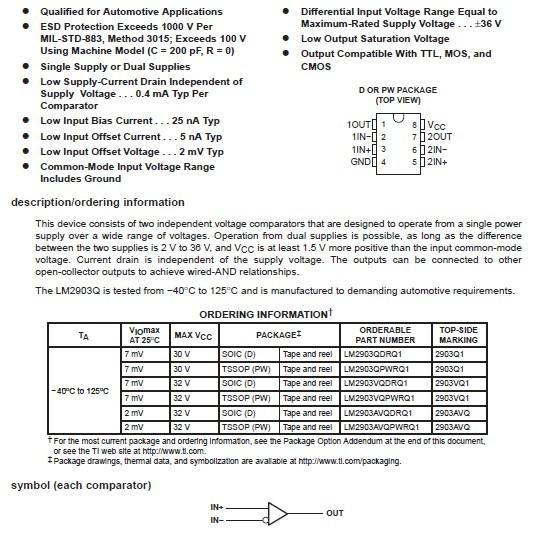

PDF datasheet：
| Mfr Package Description | GREEN, PLASTIC, SOIC-8 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | ACTIVE |
| Technology | BIPOLAR |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Surface Mount | Yes |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Position | DUAL |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Package Body Material | PLASTIC/EPOXY |
| Temperature Grade | AUTOMOTIVE |
| Supply Voltage Limit-Max | 36 V |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
| Supply Voltage-Nom (Vsup) | 5 V |
| Neg Supply Voltage Limit-Max | 0.0 V |
| Neg Supply Voltage-Nom (Vsup) | 0.0 V |
| Output Type | O-COL |
| Amplifier Type | COMPARATOR |
| Response Time-Nom | 1300 ns |
| Input Offset Voltage-Max | 4000 mV |
| Average Bias Current-Max (IIB) | -0.5000 uA |

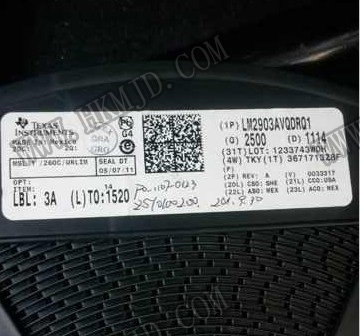

Photo：
