LTM4676AEY [ADI] - Dual-channel 13A or single-channel 26A μModule regulator

 Today, we recommend a dual-channel 13A or single-channel 26A μModule voltage regulator with digital power system management function, the LTM4676AEY. The following is a detailed introduction

The LTM4676AEY is a dual-channel 13A or single-channel 26A step-down µModule® DC/DC regulator with a conduction time of 40ms. It can remotely configure and remotely monitor power management parameters via PMBus (an Open Standard Digital Interface Protocol based on I2C). The LTM4676AEY includes a fast analog control loop, a precision mixed-signal circuit, an EEPROM, a power MOSFET, inductors and matching components.



By using the dual-wire serial interface of the LTM4676AEY, margin adjustment, fine-tuning, and oblique rise and oblique fall of the output can be performed with programmable slew rate and timing monitoring delay time. Input and output current and voltage, output power, temperature, operating time and peak value are readable. At startup, the output voltage, switching frequency and channel phase Angle distribution can be set through the pin connection resistor.



The LTM4676AEY is available in a 16mm x 16mm x 5.01mm BGA package and features a pin coating that complies with SnPb or RoHS standards.

Its main features include:

Dual-channel, fast, analog loop, controlled and monitored through a digital interface

Wide input voltage range: 4.5V to 26.5V

Output voltage range: 0.5V to 5.5V

Maximum DC output error across the full temperature range: ±0.5%

Current readback accuracy: ±2.5% (under 10A load)

The 400kHz PMBus is compatible with the I2C serial interface

Integrated 16-bit ΔΣ ADC

Supports telemetry polling rates up to 125Hz

Constant frequency current mode control

Multiple modules can be connected in parallel and share the current

Supports all 7-bit slave addresses

Compatible with dual-channel 18A LTM4677 pins

16mm x 16mm x 5.01mm BGA package

Readable data

Input and output voltage, current and temperature

Peak operating hours, uptime, faults and warnings

On-board EEPROM fault log recording with ECC function

Writable data and configurable parameters

Output voltage, voltage timing control and margin regulation

Digital soft start-stop ramp

OV/UV/OT, UVLO, frequency and phase determination



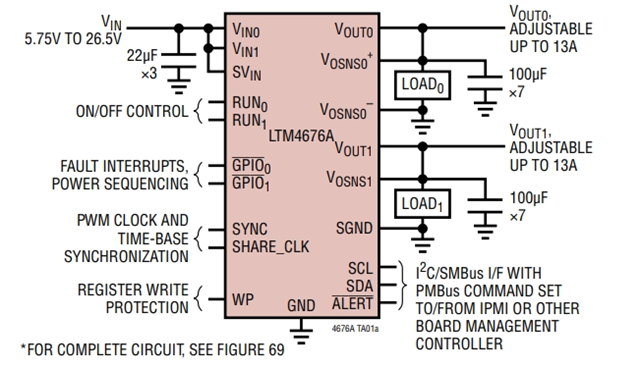

The typical applications of LTM4676AEY mainly include:

System optimization, feature analysis and data mining in prototype design, production and field environments

Telecommunication, data communication and storage systems



In addition, the technical parameters of LTM4676AEY are as follows:

Type: Non-isolated PoL module

Output number: 2

Voltage - Input (minimum value) : 4.5V

Voltage - Input (maximum value) : 26.5V

Voltage-output ratio: 0.5 to 5.4V

Voltage - Output 2:0.5-5.4V

Voltage - Output 3: -

Current - Output (maximum) : 13A, 13A

Application: ITE (Business)

Features: OCP, OTP, OVP, SCP, UVLO

Operating temperature: -40°C to 125°C

Efficiency: -

Installation type: Surface mount type

Packaging/Housing: 144-BGA
