Mingjiada Electronics——Supply ADI Original IC (ADXL377BCPZ) 3-Axis Analog MEMS Accelerometer
Package: LFCSP-16
Type: MEMS Accelerometer

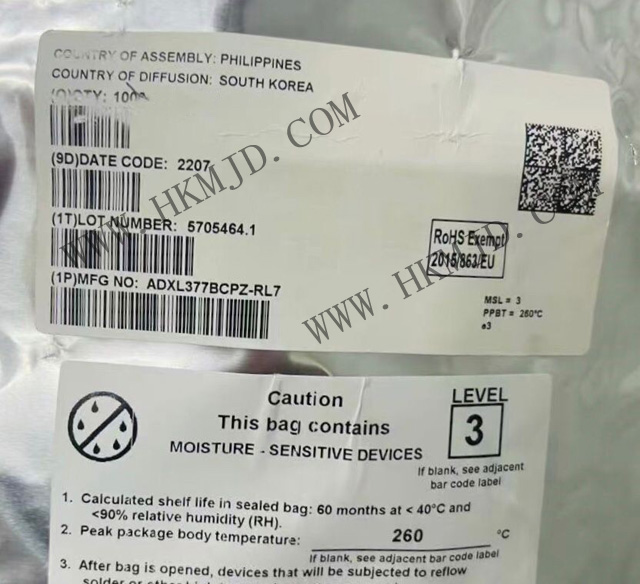

ADXL377BCPZ Product Diagram:
The ADXL377BCPZ is a three-axis, high-G analogue MEMS accelerometer that provides a signal-conditioned voltage output with a full-scale acceleration measurement range of ±200 g (min). Designed to measure dynamic acceleration due to high-impact events without sensor saturation, the ADXL377BCPZ is available in a small, thin, 3 mm × 3 mm × 1.45 mm, 16-pin pin-frame chip-scale package (LFCSP_LQ).
ADXL377BCPZ specifications:
Operating voltage: 1.8 V to 3.6 V
Measurement range: ±200g
Sensitivity: 31 mV/g typical (in the ±200g range)
Bandwidth X- and Y-axis: 0.5 Hz to 1300 Hz; Z-axis: 0.5 Hz to 1000 Hz
Noise density: 275 μg/√Hz typical
Normal mode current: 300 μA typical Power-save mode current: 300 μA typical Power-save mode current: 300 μA typical Power-save mode current: 300 μA typical Power-save mode current: 300 μA typical Power-save mode current: 300 μA typical 300 μA
Power-save mode current: less than 2 μA
Operating temperature range: 40°C to +85°C
Package: 16-LFCSP-LQ (3x3)
Package size: 3 mm × 3 mm × 1.45 mm
ADXL377BCPZ Features:
Triaxial detection
Small, thin package
3 mm × 3 mm × 1.45 mm LFCSP
Low power consumption: 300 μA (typical)
Single-supply power supply: 1.8 V to 3.6 V
Shock immunity: 10,000 g
Outstanding temperature stability/li>
Adjustment of bandwidth by a capacitor in each axis
Mingjiada Electronics has been supplying ADI (ADXL377BCPZ) Sensors - Triaxial High G Analogue MEMS Accelerometers for a long time. For more product information about Accelerometer ADXL377BCPZ or to inquire about pricing, please feel free to contact Mingjiada Electronics at:
QQ：1668527835
Tel：13410018555
Email：chen13410018555@163.com
