The F1763NBGI8 is a RF mixer product launched by (Renesas), featuring Zero-Distortion™ technology and mainly applied in receiver (Rx) scenarios. The following are its core features:
The ideal choice for multi-carrier systems
Low-side or high-end LO
11.7dB gain
Superlinear 45dBm IP3O using HS LO or 42dBm IP3O using LS LO
9.7 dB NF
200 Ω output impedance
Wide flatness performance IF BW
Directly drive the ADC for DPD applications
Low power consumption
5x5 20-pin package
Standby mode

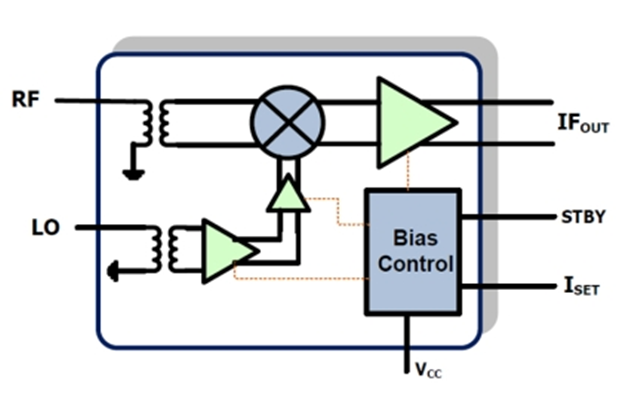

The F1763NBGI8 is a single-channel mixer designed to be powered by a single 5V supply. It is optimized for the use of low-side or high-side LO in multi-mode, multi-carrier base station receivers operating in the 2000MHz - 2900MHz frequency band. The F1763NBGI8 supports IF frequencies ranging from 50MHz to 500MHz. The nominal value of this device provides 42 dBm output IP3 and 200mA ICC.
Competitive advantage
In a typical base station receiver, the RF to IF mixer dominates the linearity performance of the entire receiving system. The Zero-DistortionTM series of mixing consoles significantly enhance the maximum signal level (IM3 pitch) that BTS can withstand at the required signal-to-noise ratio (SNR). Zero-DistortionTM technology can achieve any kind of advantage. In base station transmitters, digital predistortion (DPD) is adopted to enhance the performance of the transmitter. By using a superlinear mixer in the DPD RX path (such as IDTF1763), the ACLR and/or power consumption of the entire Tx system can be significantly improved. This is because the F1763NBGI8 can directly drive the ADC through the Anti-Alias filter. Downstream amplification is not required in DPD applications.
The F1763NBGI8 has the following technical parameters:
Frequency: 2.3GHz to 2.7GHz
Number of mixers: 1
Gain: 12.2dB
Noise figure: 10.9dB
Auxiliary attribute: -
Current - Power supply: 200mA
Voltage - Power supply: 4.75V to 5.25V
Installation type: Surface mount type
Package/Housing: 20-QFN
Application scenarios
The F1763NBGI8 is suitable for RF systems with high linearity requirements such as wireless communication, radar, and satellite communication, and can maintain stable performance especially in complex electromagnetic environments.
