Mingjiada Supply (TI) Original TPS7A8400ARGRR Low Noise, 3A Low Dropout Linear Regulator
The following are product details about TI's (TPS7A8400ARGRR) LDO regulators:
The TPS7A8400ARGRR is a low-noise, low-dropout linear regulator (LDO) that delivers a 3A pull current with a maximum dropout of only 180mV.
The TPS7A8400ARGRR is available in two output voltage ranges. The TPS7A8400ARGRR's output voltage can be set from 0.8V to 0.8V. The output voltage of the TPS7A8400ARGRR is pin-programmable from 0.8V to 3.95V with 50mV resolution and is adjustable from 0.8V to 5.15V with an external resistor divider.
The output voltage of the TPS7A8400ARGRR is pin-programmable from 0.5V to 2.075V with a resolution of 25mV and is adjustable from 0.5V to 5.15V with an external resistor divider.
Basic Information:
Package: VQFN-20
Type: Low Dropout Linear Regulator

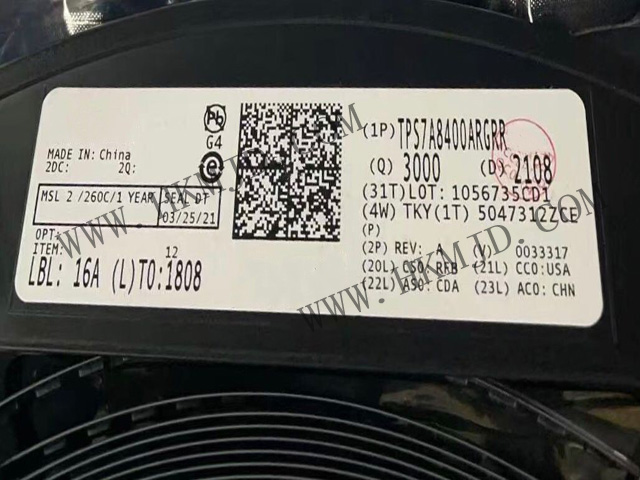

TPS7A8400ARGRR Product Diagram:
TPS7A8400ARGRR Product Characteristics:
Low Dropout: 180mV (max) at 3A with bias
Maximum accuracy over line, load, and temperature range of 0.75% with bias
Output Voltage Noise: 4.4µVRMS
Input Voltage Range:
Unbiased: 1.4V to 6.5V
Biased: 1.1V to 6.5V
Output Voltage Range:
Adjustable Operating Voltage: 0.8V to 5.15V
ANY-OUT™ Operating Voltage: 0.8V to 3.95V
Power Supply Ripple Rejection:
40dB at 500kHz
Outstanding Load Transient Response
Adjustable Soft-Start Surge Control
Open Drain Power Good (PG) Outputs
TPS7A8400ARGRR Applications:
Macro Remote Radio Units (RRUs)
Outdoor Backhaul Units
Active Antenna Systems mMIMO (AAS)
Ultrasonic Scanners
Laboratory and Field Instrumentation
Sensors, Imaging and Radar

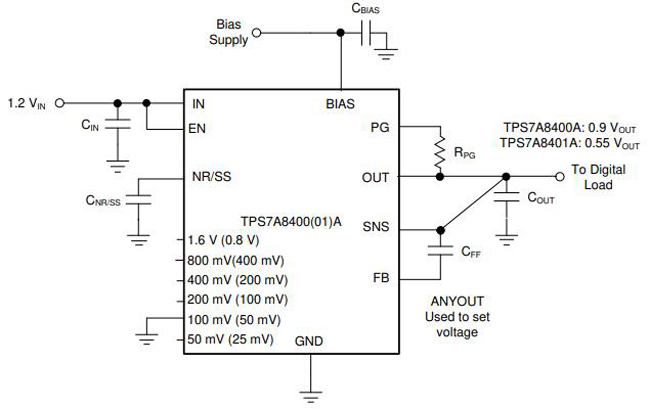

TPS7A8400ARGRR Typical Application Circuit:
