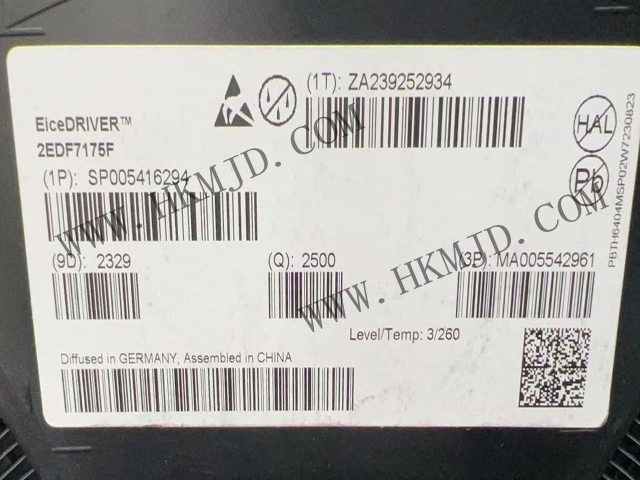

Supply Infineon 2EDF7175F Driver IC: Dual-channel, Functionally Isolated MOSFET Gate Driver

Mingjiada Electronics supplies Infineon's 2EDF7175F driver IC: a fast, reliable, dual-channel, functionally isolated MOSFET gate driver.

Product Description

The 2EDF7175F is a high-performance, dual-channel, functionally isolated MOSFET gate driver belonging to Infineon's EiceDRIVER™ series. This driver is specifically designed for high-power switching environments and is suitable for high-side and low-side MOSFET main-side control, enabling robust operation. It employs core-less transformer CT isolation technology to ensure robust operation of high-performance half-bridge circuits in noisy environments.

2EDF7175F Product Features

Powerful drive capability: Provides 4A/8A sink/source dual-channel gate drive capability, suitable for fast switching.

High Isolation Performance: Features extremely high common-mode noise immunity (CMTI) of 150V/ns, ensuring stable and reliable signal transmission.

Flexible Channel Configuration: Two output channels are individually isolated, allowing flexible deployment as floating gate drivers.

Wide Input Voltage Range: Supports SLDO mode across a wide voltage range, eliminating the need for on-board LDOs.

Package and compatibility: Uses a DSO-16 narrow-body package with a 4mm creepage distance, suitable for compact designs.

2EDF7175F Technical Specifications

Number of channels: Dual-channel

Isolation type: Functional isolation

Drive current: 4A sink current/8A source current

Package type: DSO-16

Operating temperature range: -40°C to +125°C

CMTI: 150V/ns

Transmission delay: 38ns (typical)

Channel-to-channel delay matching accuracy: 6ns

Application Scenarios

The 2EDF7175F driver IC is suitable for various high-power, high-reliability applications, including but not limited to:

Telecom DC-DC converters: For efficient power conversion.

Servers: For server power management.

Industrial Switching Power Supplies (SMPS): For power control in industrial equipment.

Uninterruptible Power Supplies (UPS): To ensure the stability and reliability of power supply.

Electric Vehicle Charging: For power management in fast-charging stations.

Smart Grids: For grid monitoring and control.

Supply Advantages

Stock Availability: Supports small quantities (minimum order of 1 piece) and bulk purchases.

Quality Assurance: All products are genuine factory originals and support testing.
