Panel Circuit Indicator TOSHIBA TLOF1060 New and original have in stock

 Panel Circuit Indicator  TOSHIBA  TLOF1060  New and original have in stock:

PDF datasheet：

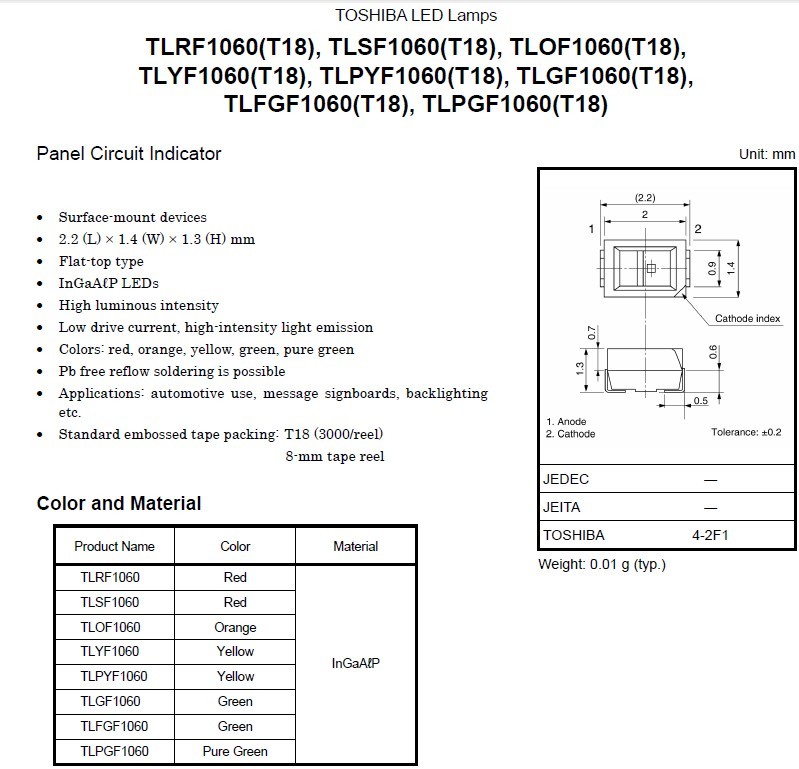

Specifications, Features, Applications:

· Surface-mount devices 2.2 (L) × 1.4 (W) × 1.3 (H) mm Flat-top type InGaAP LEDs High luminous intensity Low drive current, high-intensity light emission Colors: red, orange, yellow, green, pure green Pb free reflow soldering is possible Applications: automotive use, message signboards, backlighting etc. Standard embossed tape packing: (3000/reel) 8-mm tape reel JEDEC 4-2F1 Unit: mm

Product Name TLFGF1060 TLPGF1060 Color Red Orange Yellow Green Pure Green InGaAP Material

Product Name TLFGF1060 TLPGF1060 Forward Current IF (mA) Please see Note 1 Reverse Voltage VR (V) Power Dissipation PD (mW) Operation Temperature Topr (°C) Storage Temperature Tstg (°C)

Product Name TLFGF1060 TLPGF1060 Unit Forward Voltage VF Min Typ. V Max 15 IF Reverse Current IR Max VR

Product Name Min TLFGF1060 TLPGF1060 Unit Luminous Intensity IV Typ. mcd Max IF mA Available Iv rank Please see Note / NA

Note 2: The specification on the above table is used for Iv classification of LEDs in Toshiba facility. Each reel includes the same rank LEDs. Let the delivery ratio of each rank be unquestioned.

· This visible LED lamp also emits some IR light. If a photodetector is located near the LED lamp, please ensure that it will not be affected by the IR light. This product is designed as a general display light source usage, and it has applied the measurement standard that matched with the sensitivity of human's eyes. Therefore, it is not intended for usage of functional application (ex. Light source for sensor, optical communication and etc) except general display light source.
