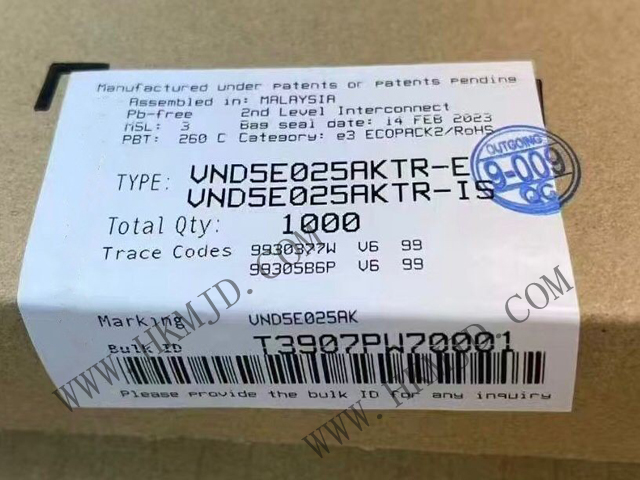

Mingjiada Electronics supplies ST high-side switch VND5E025AKTR-E Product Introduction
Product Overview
The VND5E025AKTR-E is a dual-channel high-side driver developed by STMicroelectronics, specifically designed for 12V automotive electronic systems. The device is housed in a PowerSSO-24 package and integrates VIPower™ M0-5 technology, offering efficient load driving capability and supporting analog current sensing. It is suitable for applications such as automotive body control, LED driving, and motor control.
Mingjiada Electronics has been supplying the VND5E025AKTR-E for an extended period, ensuring genuine products, stable inventory, and providing professional technical support and supply chain services.
VND5E025AKTR-E Core Features
Dual-channel high-side drive: Supports two independent outputs, with each channel capable of delivering a maximum output current of 43A, suitable for driving relays, LED light clusters, motors, and other loads.
Analogue current sensing: Provides proportional current sensing output, enabling real-time monitoring of load current for precise overcurrent protection and fault diagnosis.
Automotive-grade reliability: AEC-Q100 certified, operating temperature -40°C to +150°C, suitable for harsh automotive environments.
Multiple protection mechanisms
Overcurrent protection (fixed current limiting)
Over-temperature shutdown (automatic restart)
Open-load detection (off-state detection)
Battery reverse connection protection: ESD protection (HBM 4kV).
Low EMI design: Optimised switching characteristics reduce electromagnetic interference (EMI) and comply with automotive electronic EMC standards.
VND5E025AKTR-E Technical Specifications
Package: PowerSSO-24
Input voltage range: 4.5V to 28V
Output current (per channel): 43A (maximum)
On-resistance (RDS(on)): 25mΩ (typical value)
Switching delay: Turn-on delay 20μs / Turn-off delay 40μs
Operating temperature: -40°C to +150°C
Interface compatibility: 3V/5V CMOS input, compatible with MCU control
Protection features: Overcurrent, over-temperature, open-circuit detection, reverse polarity protection
Mingjiada Electronics, as a professional electronic component supplier, offers the following advantages:
Genuine Products: We guarantee that the supplied VND5E025AKTR-E is a genuine product.
Stock Availability: We maintain ample stock to meet customers' urgent needs.
Fast Delivery: We ship in-stock items the same day to ensure smooth project progress for customers.
Contact Information
If you need to purchase the ST high-side switch VND5E025AKTR-E, please feel free to contact us:
Contact Person: Mr. Chen
Mobile Number: +86 13410018555
Email: sales@hkmjd.com
Company Website: www.mjdic.com
Please feel free to inquire about the price, inventory, and technical specifications of the VND5E025AKTR-E!
