Product Introduction
The 9ZXL1951DNHGI clock buffer is a second-generation, performance-enhanced DB1900ZL derivative specification buffer. This clock buffer is compatible with the 9ZXL1951A pin and features superior phase jitter performance. The 9ZXL1951DNHGI buffer is equipped with 8 OE# pins that can be configured via SMBus, capable of controlling up to 16 of the 19 output channels of the device. The 9ZXL1951DNHGI buffer adopts a 6mm x 6mm QFN package, which can save space to the greatest extent. The 9ZXL1951DNHGI buffer includes fixed external feedback, thereby maintaining low drift for critical QPI/UPI applications. The 9ZXL1951DNHGI buffer is suitable for servers, storage, networks and SSDS.

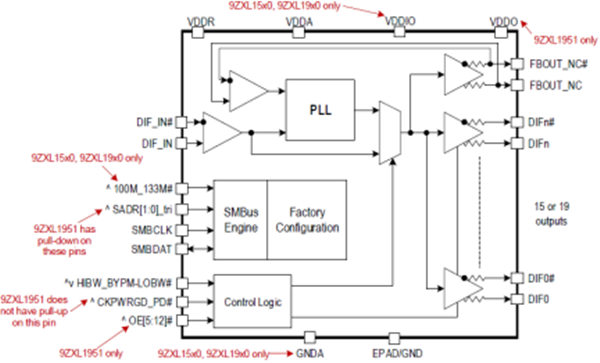

Product features
The LP-HCSL output can eliminate up to 4 resistors per pair
▪ 9 optional SMBus addresses
The optional PLL bandwidth can minimize the jitter peaks in the cascaded PLL topology
The hardware /SMBus control in ZDB and FOB modes allows for changes without restarting
▪ 8 OE# pins support PCIe CLKREQ# function (9ZXL1951)
▪ Compatible with spread spectrum
▪ 100MHz and 133.33MHz ZDB modes (9ZXL15x0, 9ZXL19x0)
▪ 100MHz ZDB mode (9ZXL1951)
▪ 1-400 MHZ FOB mode (for all devices)
▪ Operating temperature range: -40°C to 85°C
Typical applications
▪ Server
▪ nVME storage
▪ Network
▪ Accelerator
▪ Industry
In addition, the 9ZXL1951DNHGI also has the following main specifications:
PLL: Yes
Main uses: Intel QPI, PCI Express (PCIe)
Input: Clock
Output: HCSL
Number of circuits: 1
Ratio - Input: Output: 1:19
Differential - Input: Output: Yes/Yes
Frequency - Maximum value: 400MHz
Voltage - Power supply: 3.135V to 3.465V
Operating temperature: -40°C to 85°C
Installation type: Surface mount type
Package/Housing: 80-VFQFN
This device reduces drift by fixing an external feedback mechanism and optimizes EMI performance, making it suitable for scenarios with strict requirements for clock stability.
