(Supply) RC21214A000GND - 8-channel output programmable clock generator for vehicles

 The RC21214A000GND AutoClock automotive clock generator is a high-performance programmable clock generator specifically designed for automotive applications. The features of the RC21214A000GND generator include ISO9001 compliance, AEC-Q100 certification, an operating temperature range of -40°C to +105°C (equivalent to Class 2), and PPAP support. These features can achieve high reliability and robustness in automotive environments, meeting strict industry standards, while providing diagnostic functions to enhance performance monitoring.

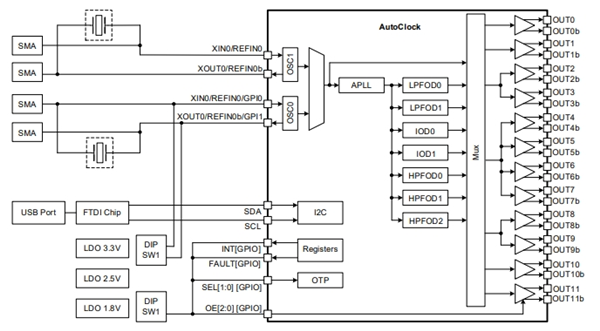

Main features

169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)

PCIe® Gen6 Common Clock (CC) 27fs RMS

Supports PCIe SRIS and SRNS

Output: 1kHz to 650MHz (differential), 1kHz to 200MHz (single-ended)

LVCMOS, LVDS or low-power HCSL output types are simply AC coupled to LVPECL and CML

LPHCSL integrated terminal

Seven programmable general-purpose input/output (GPIO)

Multiple configurations can be stored in the internal one-time programmable (OTP) memory

1MHzI2C serial port

Operating voltage: 1.8V and/or 3.3V

Package: 5mm×5mm×0.75mm 40-QFN package

8 differential or 16 single-ended outputs: RC21214 (dual crystal)

Typical applications

RC21214A000GND is mainly used in scenarios where strict requirements are placed on clock accuracy and reliability. Youdaoplaceholder0 these applications include:

Information entertainment

"Approach"

Domain controller

Regional controller

Basic parameters

Product: RC21214A000GND

Type: Clock generator

PLL: With bypass

Input: clock, crystal

Output: CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 2:8

Differential - Input: Output: None/Yes

Frequency - Maximum value: 650MHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 1.71V to 1.89V, 3.135V to 3.465V

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount, wettable side wing

Grade: Automotive grade

Qualification: AEC-Q100

Packaging/Housing: 40-WFQFN
