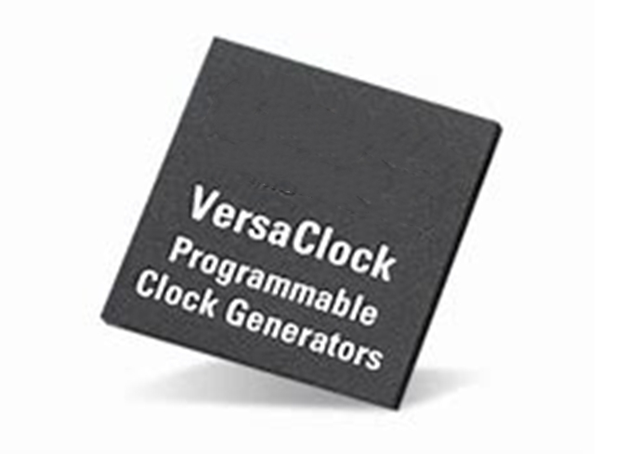

【Supply Renesas】VersaClock 3S/VersaClock 6E/VersaClock 7 programmable clock generators

 Renesas' VersaClock® series of programmable clock generators combine low power consumption, high flexibility and high performance. They can simplify the design by replacing multiple discrete clock components and also reduce costs by lowering the BOM and reducing the space on the circuit board. The above-mentioned features provide unprecedented diversity for consumer electronics, data communication, telecommunications and network applications.



Shenzhen Mingjiada Electronics Co., LTD., relying on an original factory inventory of tens of millions, fully supplies (Renesas) VersaClock® programmable clock generators. With in-depth technological empowerment, rapid delivery and closed-loop recycling services, it helps customers overcome the timing challenges in cutting-edge fields such as PCIe Gen6, 400G optical modules and automotive-grade computing.



The VersaClock product series supports operating voltages ranging from 1.8 to 3.3V, differential (LVPECL/HCSL/LVDS/LP-HCSL) and LVCMOS output types, and can support up to 3 PLLS and multiple fractional dividers, enabling accurate generation of almost any frequency. The product can meet various system requirements, such as replacing oscillators, supporting PCIe® Gen 1/2/3/4/5/6/7 and communication applications, while featuring extremely low power consumption.



The main features and advantages of VersaClock 7

It offers 8 to 12-channel differential output and built-in quartz oscillator options

It has a low phase jitter performance of 150fs RMS 12k-20MHz

Flexible working voltage: 1.8V/2.5V/3.3V

Clock hold and uninterrupted switching

Supports SPI/I2C/SMBUS communication interfaces

Supports PCIe Gen 1/2/3/4/5/6/7 standards

Space-saving QFN packages of 5 x 5 mm and 6 x 6 mm

One-time programmable (OTP) or up to 27 configurations can be scrolled through an external EEPROM



The main features and advantages of VersaClock 3S

The 2mA - 10mA - 15mA low-power 3-PLL design can easily achieve a balance between power consumption and performance

Conforming to the PCIe Gen 1/2/3 standard

<2 µA 32.768 kHz RTC clock

I2C interface

The configurable OE pins can be used for OE, PD#, PPS or DFC control functions



The main features and advantages of VersaClock 6E

The phase jitter of RMS is less than 500fs, which can meet the strict noise requirements

30mA core flow consumption

Support any input/output frequency with 4 groups of decimal divisions

OTP offers four configurations without the need for external memory

I2C programmable

Conforming to the PCIe Gen 1/2/3/4/5 standard



The Renesas VersaClock programmable product line offers a highly competitive solution to meet your requirements regarding products and time-to-market. Renesas' VersaClock product offers an almost universal solution for a wide range of high-performance clock applications.

Get your timing solution right now
