5 A SWITCHING REGULATOR, 4300 kHz SWITCHING LT LT3477EFE LT3477 MJD have in stock

 5 A SWITCHING REGULATOR, 4300 kHz SWITCHING  LT  LT3477EFE  MJD have in stock:

PDF datasheet：

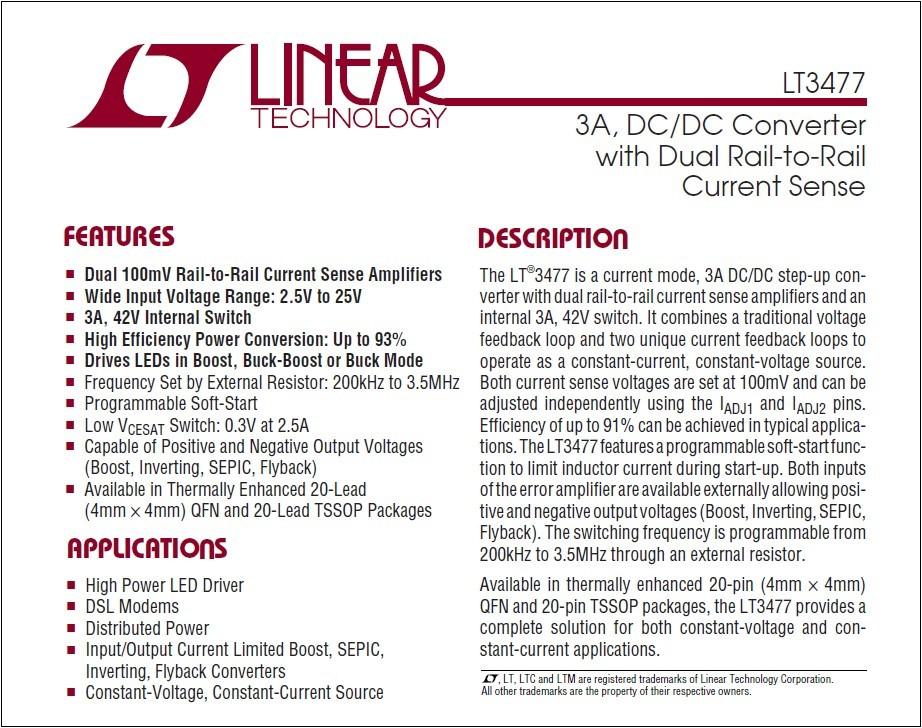

The characteristics of

Dual channel 100 mv rail to rail current amplifier
Wide range of input voltage: 2.5 V to 25 V
3 a, 42 v internal switch
Efficient power conversion: up to 91%
To buck, buck - boost or booster mode to drive the leds
Using an external resistor to set frequency, 200 KHZ to 3.5 MHz
Programmable soft start
Low VCESAT switch: 0.3 V / 2.5 A
Provides positive and negative output voltage (booster, negative output, SEPIC, flyback)
Heat-resisting enhanced with 20 pins (4 mm x 4 mm) QFN and 20 pins TSSOP package

describe

LT ® 3477 is a two-way track to track current amplifier and an internal 3 a, 42 v switch current mode, 3 a DC/DC boost converter.It integrates a traditional voltage feedback loop, and two unique current feedback loop to a constant current, constant voltage source.Both current detection voltage was set at 100 mv, and can be used independently regulate IADJ1 and IADJ2 pin.Can be realized in the typical application of up to 91% efficiency.LT3477 has a programmable soft starting function, used to limit the inductor current during start.Two input of error amplifier can be obtained from outside, thus provides the positive and negative output voltage (booster, negative output, SEPIC, flyback).Using an external resistor switching frequency can be set in the range of 200 KHZ to 3.5 MHz.
LT3477 heat-resisting enhanced with 20 pins (4 mm x 4 mm) QFN and 20 pins TSSOP package, for constant voltage and constant current application provides a complete solution.

application
High power LED driver
DSL modems
Distributed power
Using the input/output current limit of booster, SEPIC, negative output, the flyback converter
Constant voltage and constant current source

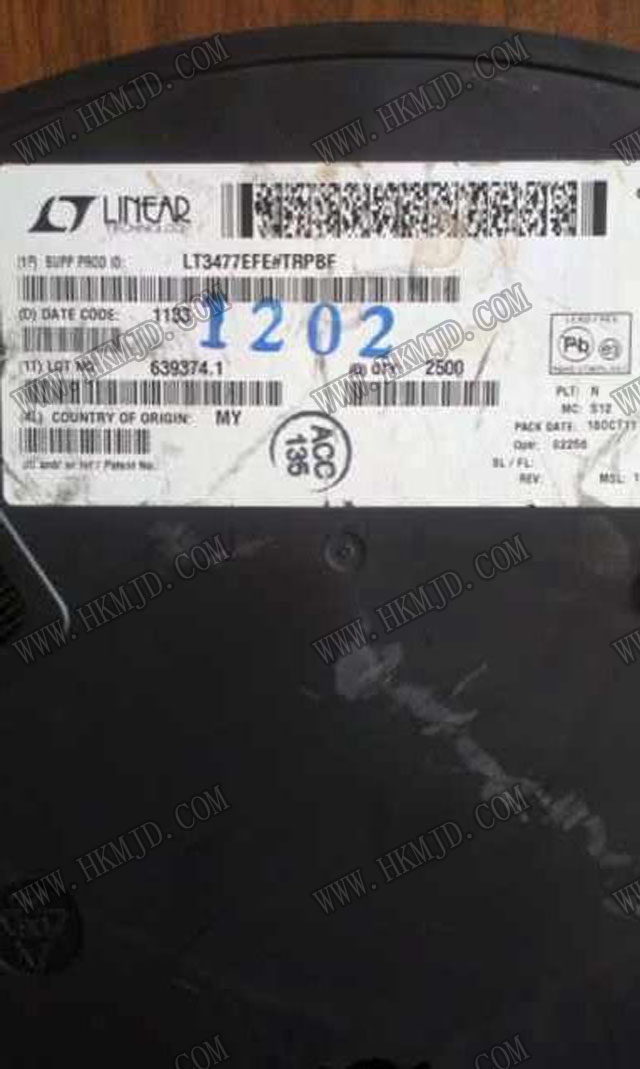

Photo:
