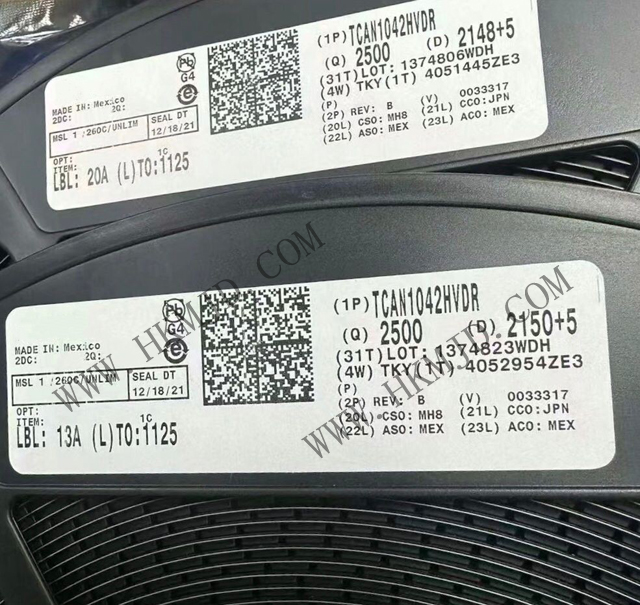

Mingjiada Electronics Offers [TI] TCAN1042HVDR High-Speed CAN Transceiver

Mingjiada Electronics Offers [TI] TCAN1042HVDR High-Speed CAN Transceiver - Meet the Demands of Harsh Industrial and Automotive Applications


Mingjiada Electronics As a trusted supply chain partner for electronic components, we continue to provide our customers with high-performance, high-reliability Texas Instruments (TI) products. We have a long term supply of TI (TCAN1042HVDR) high speed CAN (Controller Area Network) transceivers in stock. Designed to meet the challenges of demanding industrial and automotive environments, this device is ideal for building reliable in-vehicle networks, industrial automation, and communication nodes.


TCAN1042HVDR Product Description
The TCAN1042HVDR is an automotive-grade, high-speed CAN transceiver that complies with the ISO 11898-2 (2016) standard. It acts as an interface between the microcontroller CAN protocol controller and the physical two-wire CAN bus. Its core strengths include high immunity to interference, wide operating voltage range, and robust fault protection features.The TCAN1042HVDR supports data rates up to 5 Mbps, ensuring stable, high-speed data communication in complex electromagnetic environments. It is designed to comply with the AEC-Q100 standard to meet the stringent temperature and reliability requirements of automotive electronics.

TCAN1042HVDR Core Features
Wide Common-Mode Voltage Range and High Withstand Voltage:
The bus pins have a high ±58V withstand voltage capability (compliant with ISO 16750-2 impulse test), which can effectively withstand transient voltage shocks such as load dumping and battery reversal, which are common in automotive power systems.
Wide bus common-mode voltage range of -30V to +30V ensures stable communication in harsh electrical environments.
Ultra-low Electromagnetic Interference (EMI):
uses TI's proprietary ramp control technology to significantly reduce electromagnetic emissions (EME) and easily meet stringent automotive EMC standards such as CISPR 25 Class 5.
Outstanding Electromagnetic Immunity (EMS):
demonstrates excellent immunity to strong EMI environments, ensuring communication reliability.

TCAN1042HVDR Key Specifications
Device Model Number TCAN1042HVDR
Package SOIC (8-Pin)
Conformity ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5
Data Rate Up to 5 Mbps
Operating Voltage (Vsup) 4.5V to 5.5V
Logic Interface (VIO) 1.8 V, 3.3V, 5V, 1.8 V, 3.3V, 3.3V, 5V. V, 3.3V, 5V compatible
Bus withstand voltage range ±58V (pulse tested to ISO 16750-2)
Common-mode voltage range -30V to +30V
Operating temperature range -40°C to +125°C (AEC-Q100 Grade 1)
Low-power modes Sleep mode (µA-level current), standby mode with wake-up
Protection features ±58V bus short-circuit protection, thermal shutdown, significant time-outs Thermal shutdown, dominant timeout (TXD DTO), bus fault diagnostics
EMC Performance Low EMI (meets CISPR 25 Class 5), high EMS

Typical application areas of the TCAN1042HVDR
Thanks to its robustness and reliability, the TCAN1042HVDR is used in a wide range of scenarios where communication stability and environmental adaptability are of paramount importance:
All devices support high load CAN networks
Industrial automation, control, sensors, and drive systems
Building, security, and temperature control automation

[Mingjiada Electronics] Long term supply TCAN1042HVDR, if you need Transceiver TCAN1042HVDR datasheet, sample request or quotation, welcome to contact Mingjiada Electronics :
QQ:1668527835
Tel:13410018555
E-mail:chen13410018555@163.com
Home URL:www.mjdic.com
