ADI [AD5726YRSZ-1500] four-channel, 12-bit, serial input, unipolar/bipolar, voltage output DAC

 Shenzhen Mingjiada Electronics Co., Ltd. supplies ADI [AD5726YRSZ-1500] four-channel, 12-bit, serial input, unipolar/bipolar, voltage output DAC. The following is a detailed introduction to this DAC:

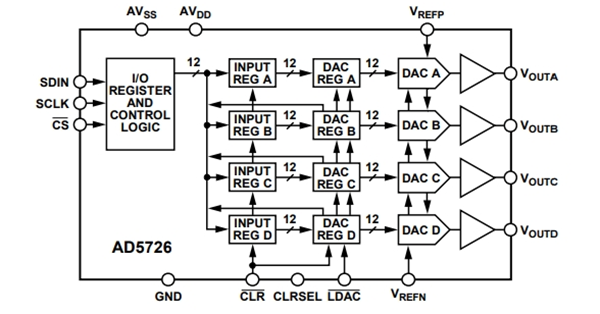

Explanation

The AD5726YRSZ-1500 is a four-channel, 12-bit, serial input, voltage-output digital-to-analog converter (DAC) manufactured using ADI's iCMOS® process technology, ensuring monotonicity with a maximum integrated nonlinearity (INL) error of ±1 LSB.

The output voltage swing is set by two reference voltage inputs, VREFP and VREFN. When the VREFN input is set to 0 V and the VREFP input is set to positive voltage, the AD5726YRSZ-1500 can provide a unipolar positive output range. When a similar configuration is adopted, that is, when VREFP is 0 V and the VREFP input is set to 0 V and the VREFP input is set to positive voltage, the AD5726YRSZ-1500 can provide a unipolar positive output range. With a similar configuration, that is, when VREFP is 0 V and VREFN is negative voltage, the AD5726YRSZ-1500 can provide a unipolar negative output range.

The bipolar output is configured by connecting both VREFP and VREFN to a non-zero voltage. This method of setting the output voltage range does not rely on internal and external resistors with different temperature coefficients, and thus is superior to the bipolar offset method.

The AD5726YRSZ-1500 adopts a serial interface, capable of operating at a maximum clock rate of 30 MHz, and is compatible with DSP and microcontroller interface standards. By using the asynchronous CLR function, all DAC registers can be reset to the zero level or intermediate level output that the user can select.

The AD5726YRSZ-1500 adopts a 20-pin SSOP package. It can operate with various power supplies and reference voltages, with a single power supply voltage range of + 5V to ± 15V and a reference voltage range of + 2.5V to ± 10V. When powered by ± 15V, the power consumption is less than 240 mW. When powered by a + 5V supply, the power consumption is only 30mW. The operating temperature range of this device is from -40 °C to +125°C.

Core features

Working voltage: + 5V to ± 15V

Unipolar or bipolar operation

Integral nonlinearity (INL) error: ±1 LSB (maximum value);

Differential nonlinearity (DNL) error: ±1 LSB (maximum value

Ensure monotonicity within the working temperature range

Double-buffered input

Update simultaneously via LDAC

The asynchronous CLR is reset to zero level or intermediate level

Basic parameters

Product: AD5726YRSZ-1500

Number of digits: 12

Number of digital-to-analog converters: 4

Establishment time: 13µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interfaces: SPI, DSP

Reference type: External

Voltage - Power supply, analog: ±5V to 15V

Voltage - power supply, number: 5V - 15V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 125°C

Packaging/Housing: 20-SSOP

Application of AD5726YRSZ-1500

"Industrial automation"

Closed-loop servo control, process control

- Automobile testing and measurement

- Programmable logic controller
