The R9A09G056N44GBG is a quad-core Arm Cortex-A55 microprocessor (MPU) launched by (Renesas), belonging to the RZ/V2N series, specifically designed for high-efficiency AI processing and visual applications. The following are its core features:
Cortex-A55 (1.8GHz) x 4 cores
Cortex-M33 (200MHz) x 1 core
AI Accelerator DRP-AI
Arm Mali™-C55 ISP (Optional)
1.5MB on-chip SRAM
LPDDR4/LPDDR4X memory interface
Gigabit Ethernet interface × 2
USB 2.0 interface x 1 (Host/Function)
USB 3.2 (Gen2) interface x 1 (Host only)
PCIe interface (Gen3/2 line) x 1
MIPI CSI-2 Camera interface x 2
CAN Interface (CAN FD) x 6
AD converter × 24
BGA package (15x15mm 840 pins, 0.5mm pitch)

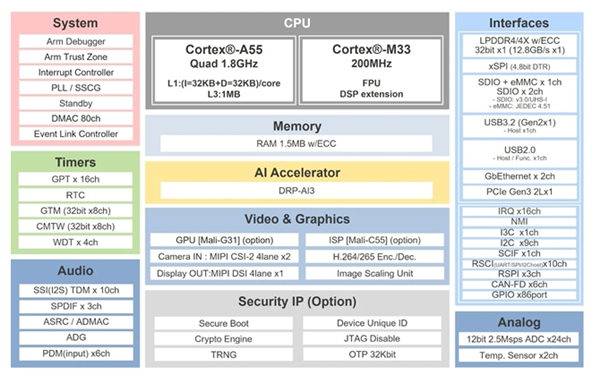

Block diagram of R9A09G056N44GBG
Product Description
The R9A09G056N44GBG is a visual AI microprocessor (MPU) belonging to the RZ/V2N series, equipped with Renesas Electronics' proprietary AI accelerator (DRP-AI3), supporting up to 15TOPS of AI performance. Its CPU is a quad-core Arm® Cortex®-A55 (1.8GHz) and Arm Cortex-M33 (200MHz). The RZ/V2N is equipped with an ISP (Image Signal Processor) and a dual-channel MIPI® CSI-2® camera interface, which can support dual-camera signal processing, which is crucial for the realization of a vision system.
In addition, the R9A09G056N44GBG is also equipped with high-speed interfaces such as PCIe® and USB 3.2, allowing for the expansion of external devices. The R9A09G056N44GBG is an ideal microprocessor, suitable for applications that require low power consumption and advanced artificial intelligence inference, such as DMS (Driver Monitoring System), surveillance cameras, mobile robots, etc.
Application scenarios
R9A09G056N44GBG is mainly used in low-power AI scenarios, including:
Dashboard camera/driver monitoring system
AI surveillance camera
AI personnel count cameras
AI visual detection camera
Sweeping robot
Lawn mowing robot
Smart doorbell
Access Control
