RAA2100404GLG is a step-down DC/DC mini module launched by (Renesas), capable of providing a continuous current of up to 4A. The following are its key features:
4A complete power supply
Integrated controller, gate driver, MOSFET and inductor
Input voltage range: 2.7V to 5.5V
Adjustable output voltage
It is as low as 0.6V within the range of lines, loads and temperatures, with an accuracy of ±1.5%
The efficiency is as high as 95%
The operation is controlled by the default 2MHz current mode
The resistor is adjustable from 500kHz to 4MHz
External synchronization to 4MHz
100% duty cycle factor
The dedicated enable pins and power supply are in good condition
Internal 1ms soft start time
Soft stop output discharge
UVLO, OCP, negative OCP, OVP and OTP
OCP/ Short-circuit Protection (SCP) hiccup mode
Compact 3mmx3mmx1.7mm double flat leadless (DFN) package in compliance with RoHS standards
Overview

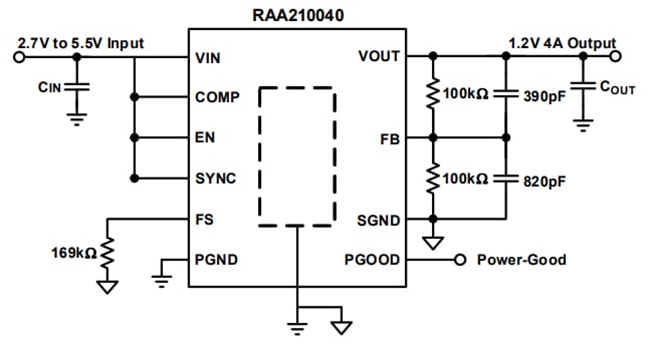

The RAA2100404GLG power module is a compact, synchronously step-down, non-isolated complete power supply that can provide a continuous current of up to 4A. By operating on a single 2.7V to 5.5V input power rail and integrating a controller, gate driver, power inductor and MOSFET, the RAA2100404GLG is optimized for space-constrained applications.
The RAA2100404GLG is based on a peak current mode control scheme, providing fast transient response and excellent loop stability. The output voltage can be set as low as 0.6V, and the set point accuracy is better than 1.5% within the range of lines, loads and temperatures. The default operating frequency is set to 2MHz. However, it can also be set between 500kHz and 4MHz through an external resistor. External synchronization supports external clock signals up to 4MHz. The RAA2100404GLG supports 100% duty cycle to minimize switching losses and allows for a voltage drop of less than 200mV. The dedicated enable pins and the power good mark make it easy to sort the system power rail.
The RAA2100404GLG features a series of protection functions, including input under-voltage lockout (UVLO), overcurrent protection (OCP), output over-voltage protection (OVP), and over-temperature protection (OTP), ensuring safe operation under abnormal operating conditions.
The application fields of RAA2100404G 4G include:
Telecommunications, industrial, optical and medical equipment
Load point conversion
MCU, MPU, DSP and FPGA
