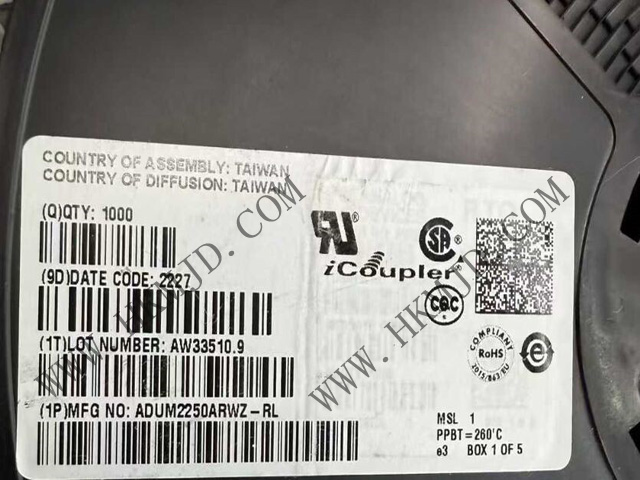

Mingjiada Supply [ADUM2250ARWZ] 5kV, Hot Swappable I2C Digital Isolators
Package: SOIC-16
Type: I2C Isolator
The ADUM2250ARWZ is a hot-swap digital isolator providing two bidirectional channels for fully isolated I²C interfaces. Its integrated hot-swap circuitry prevents data interference when passive cards are inserted into active buses. The ADUM2250ARWZ employs iCoupler® chip-scale transformer technology. iCoupler is a magnetic isolation technology that surpasses optocouplers in functionality, performance, size, and power consumption.
ADUM2250ARWZ Specifications:
Technology: Magnetic coupling
Type: I2C
Isolated power supply: None
Number of channels: 2
Input - Side 1/Side 2: 2/2
Channel Type: Bidirectional
Voltage - Isolation: 5000Vrms
Common-Mode Transient Immunity (Minimum): 25kV/µs
Data Rate: 1Mbps
Pulse Width Distortion (Maximum): 145ns, 85ns
Voltage - Supply: 3V to 5.5V
Operating Temperature: -40°C to 105°C
Mounting Type: Surface Mount
Package/Case: 16-SOIC (0.295", 7.50mm width)
Supplier Device Package: 16-SOIC
ADUM2250ARWZ Product Features:
Bidirectional I²C communication
Open-drain interface
Suitable for hot-swap applications
30 mA sink current capability
Operating frequency: 1000 KHz
Supply Voltage/Logic Level: 3.0 V to 5.5 V
Operating Temperature: Up to 105°C
ADUM2250ARWZ Applications:
I²C, SMBus or PMBus interface isolation
Multi-level I²C interfaces
Power supplies
Networks
Power over Ethernet
ADUM2250ARWZ – Timing Test Diagram:
【Mingjiada Electronics】Long-term supply of ADI (ADUM2250ARWZ) 5kV hot-swappable dual-channel I2C® isolators. The above constitutes the product description for ADUM2250ARWZ. For further product information or pricing enquiries regarding ADUM2250ARWZ, please visit the Mingjiada Electronics official website (www.szmjd.com) to view supply details.
