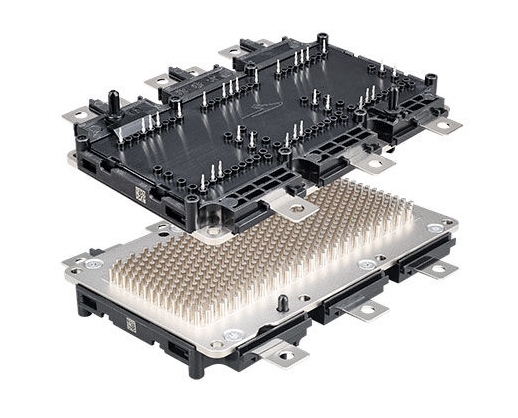

The ECB4R3M12YM3 is a 1200V silicon carbide (SiC) power module launched by Wolfspeed, belonging to its YM series of products. It adopts Wolfspeed's advanced silicon carbide technology, aiming to provide high-efficiency, high-reliability and high-power-density solutions for high-power applications.
Its main specifications are as follows:
Product: ECB4R3M12YM3
Technology: Silicon Carbide (SiC
Configuration: 6 N channels (three-phase inverter)
FET function: -
Drain-source voltage (Vdss) : 1200V (1.2kV
Current at 25°C - continuous drain (Id) : 385A
On-resistance (maximum value) at different ids and Vgs: 5.5 milliohms @ 350A, 15V
Vgs(th) (maximum value) at different ids: 3.6V @ 84mA
Gate charge (Qg) at different Vgs (maximum value) : 848nC @ 15V
Input capacitance (Ciss) at different Vds (maximum value) : 25600 PPF @ 800V
Power - Maximum: 1.1kW (Tj)
Operating temperature: -40°C to 175°C (TJ)
Installation type: Base installation
Packaging/Housing: Module
Module Overview
The ECB4R3M12YM3 is a 1200V silicon carbide (SiC) power module, packaged in Wolfspeed's YM series. The ECB4R3M12YM3 integrates Six N-channel SiC MOSFETs, forming a three-phase full-bridge topology (six-pack), which is highly suitable for three-phase inverter designs, such as the main drive inverter of electric vehicles, industrial motor drives, and renewable energy power generation systems, etc.
The core advantage of this ECB4R3M12YM3 module lies in leveraging the high switching frequency, high working efficiency, high temperature stability, as well as lower switching loss and conduction loss of silicon carbide material itself, thereby helping the system achieve miniaturization, lightweight and higher energy efficiency.
Application scenarios
The ECB4R3M12YM3 module is specifically designed for automotive electronics and is mainly used for:
Electric vehicle/hybrid electric vehicle (EV/HEV) traction inverter: As the core power conversion unit of electric vehicles, it converts the direct current from the battery into alternating current to drive the motor.
Traction systems for commercial, construction and agricultural vehicles (CAVs).
Renewable energy systems: such as solar inverters, power conversion of energy storage systems (ESS) 4.
Industrial motor drive: It is used to control various industrial motors, improving energy efficiency and control accuracy.
Uninterruptible power supply (UPS) : Provides efficient and reliable power guarantee.
