[In Stock] Mingjiada Supply ST (STM32H743VGT6) 480MHz, High-Performance 32-Bit Microcontroller IC
Product Details:
Package: LQFP-100
Type: 32-bit Microcontroller - MCU

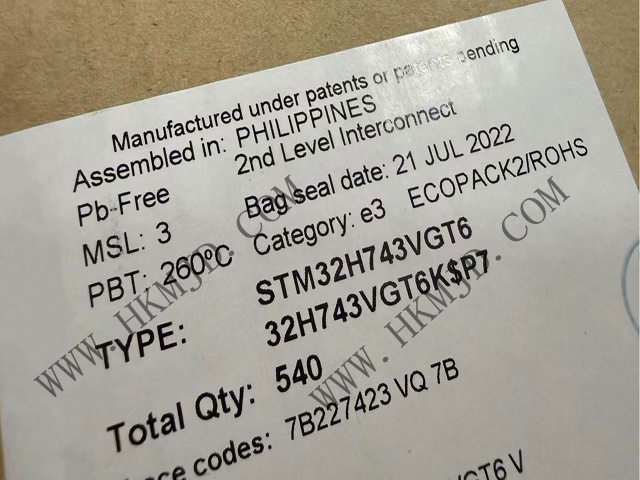

STM32H743VGT6 — Product Image:
The STM32H743VGT6 is based on the high-performance Arm® Cortex®-M7 32-bit RISC core, operating at up to 480 MHz. This core incorporates a dual-precision floating-point unit (FPU) (supporting the IEEE 754 standard), alongside a comprehensive DSP instruction set and a memory protection unit (MPU), significantly enhancing application security and processing capabilities.
The STM32H743VGT6 incorporates high-speed embedded memory, including up to 2 MB of dual-bank flash memory (supporting read-while-write operations) and up to 1 MB of RAM. The RAM comprises 192 KB of TCM RAM (including 64 KB of ITCM RAM + 128 KB of DTCM RAM for time-critical routines), up to 864 KB of user SRAM, and 4 KB of backup SRAM. Its multi-layer bus architecture (APB bus, AHB bus, 2x32-bit multi-AHB bus matrix, and multi-layer AXI interconnect) supports efficient internal and external memory access.
STM32H743VGT6 Product Features:
Core
- 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 caches: 16 KB data and 16 KB instruction caches; operating at up to 480 MHz, MPU, 1027 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), featuring DSP instructions
Memory
- Up to 2 MB Flash memory supporting synchronous read/write operations
- Up to 1 MB RAM: 192 KB TCM RAM (including 64 KB ITCM RAM + 128 KB DTCM RAM for time-critical programmes), up to 864 KB user SRAM, plus 4 KB SRAM in backup domain
- Dual-mode Quad SPI memory interface operating at up to 133 MHz
- Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memory, clocked at up to 100 MHz in synchronous mode
- CRC calculation unit
1.62 to 3.6 V application supply voltage and I/O
4 DMA controllers to reduce CPU load
Up to 35 communication peripherals
11 analogue peripherals
Up to 22 timers and watchdog
Mingjiada Electronics supplies STMicroelectronics' STM32H743VGT6 high-performance microcontroller. For further product details or pricing enquiries regarding the STM32H743VGT6, please visit Mingjiada Electronics' official website (www.mjdic.com) to view supply information.
