This Xilinx XC7Z035-2FFG676I, available from Mingjiada Electronics, is a system-on-chip (SoC) integrating a high-performance dual-core ARM processor with programmable logic (FPGA). Belonging to the Xilinx Zynq®-7000 series, it effectively addresses the dual demands of processing power and hardware flexibility required by complex embedded systems.
Core Features
The XC7Z035-2FFG676I's core strength lies in the seamless integration of its ARM Cortex-A9 dual-core processor with the programmable logic of the Kintex™-7 architecture.
Processing System (PS):
Includes dual ARM Cortex-A9 MPCore™ processors, each operating at up to 800MHz, with integrated CoreSight™ debug trace technology.
It features 256KB of on-chip memory (OCM) and supports multiple external memory interfaces, such as DDR3, DDR3L, DDR2, or LPDDR2.
Programmable Logic (PL):
Utilises the 28nm Kintex™-7 FPGA architecture, providing a rich resource of 275,000 logic cells.
This enables customisation of hardware functionality to implement specialised logic for high-speed data acquisition, image processing, real-time control, and similar applications.
Extensive Peripherals and Interfaces: The chip integrates numerous commonly used peripheral interfaces, including:
Gigabit Ethernet (two 10/100/1000 MACs), USB 2.0 OTG, CAN, UART, SPI, I2C, SD/SDIO, and others.
These interfaces significantly reduce the number of external components, simplifying board-level design and lowering system costs.
Product Attributes
Manufacturer: Xilinx

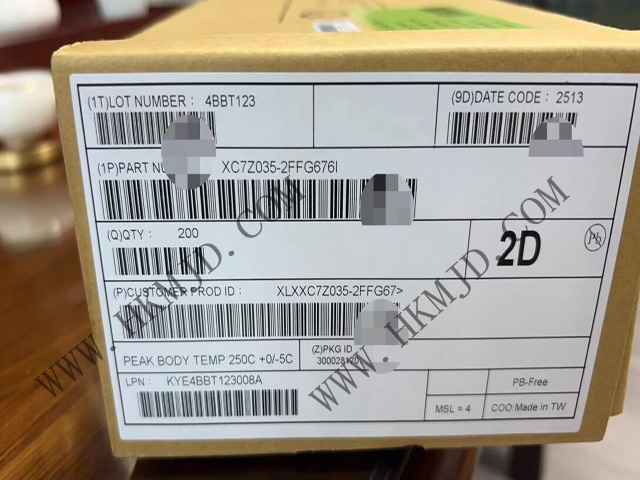

Product Model: XC7Z035-2FFG676I
Product Type: SoC FPGA
Mounting Style: SMD/SMT
Package/Case: FCBGA-676
Core: ARM Cortex-A9
Number of Cores: 2 Core
Maximum Clock Frequency: 766 MHz
L1 Instruction Cache: 2 x 32 kB
L1 Data Cache: 2 x 32 kB
Number of Logic Elements: 275,000 LE
Adaptive Logic Modules - ALM: 42,975 ALM
Embedded Memory: 17.6 Mbit
Number of Input/Output Pins: 250 I/O
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +100°C
Humidity Sensitivity: Yes
Number of Logic Array Blocks - LAB: 21,487.5 LAB
Series: XC7Z035
Should you be interested in this product or require further details (such as current pricing and stock availability), please contact Mingjiada Electronics directly for the most accurate and professional information.
