The LAN8810-AKZE is a Gigabit Ethernet physical layer transceiver from Microchip that supports 10/100/1000 Mbps rates and complies with IEEE 802.3 and IEEE 802.3ab standards. Its technical parameters are as follows:
Product: Ethernet Transceivers
Standard: 10/1GBASE-T, 100BASE-TX
Number of transceivers: 1 Transceiver
Data rate: 10 Mb/s, 100 Mb/s, 1 Gb/s
Interface types: JTAG, MDI-X, MII, GMII
Power supply voltage - minimum: 1.2V
Power supply voltage - maximum: 1.2V
Operating temperature: 0°C to + 70°C
Packaging/Housing: VQFN-72

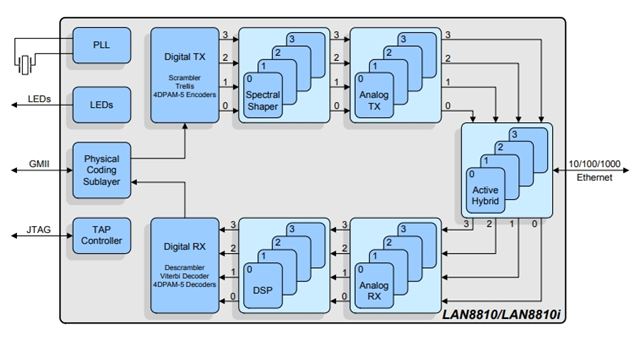

Introduction to LAN8810 Chip
The LAN8810-AKZE is a low-power 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet physical layer (PHY) transceiver with variable I/O voltage and fully complies with IEEE 802.3 and 802.3AB standards.
The LAN8810-AKZE can be configured to communicate with Ethernet MAC via the standard MII (IEEE 802.3u) /GMII (IEEE 802.3z) interface. It features a full-duplex transceiver that can operate at 1000 Mbps on four-pair Category 5 or better balanced twisted-pair cables. According to the IEEE 802.3-2005 standard, all digital interface pins can withstand 3.6V.
The LAN8810-AKZE can also be configured through hardware and software, and supports register functions that comply with the IEEE 802.3-2005 standard and vware-specific via SMI. The LAN8810-AKZE enables automatic negotiation to automatically determine the optimal speed and dual working mode. HP Auto-MDIX support allows the use of direct connection or cross cables.
Key features
Single-chip Ethernet physical layer transceiver (PHY)
Compliant with IEEE 802.3AB (1000BASE-T), IEEE 802.3U (Fast Ethernet) and ISO 802-3/IEEE 802.3 (10BASE-T)
HP Auto-MDIX supports compliance with the IEEE 802.3ab specification and operates at speeds of 10/100/1000 Mbps
Small-sized, 72-pin QFN lead-free RoHS standard package, with GMII (10 x 10 x 0.9mm height)
Flexible configuration of LED status indicator lights
Realize a low-power working mode
LAN8810-AKZE transceiver target application
Set-top box
• Networked printers and servers
• Testing instruments
The local area network on the motherboard
Embedded telecommunications applications
• Video recording/playback system
• Cable modem/router
• DSL modem/router
Digital video recorder
• IP and video calls
• Wireless access point
Digital Television
• Digital media adapter/server
"Game console
• POE Application
