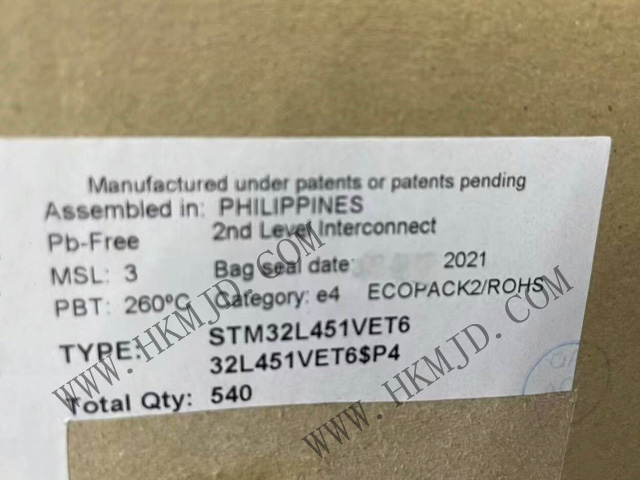

[In Stock] STM32L451VET6 80MHz, High-Performance 32-Bit Microcontroller IC, LQFP-100
The STM32L451VET6 is an ultra-low-power microcontroller based on the high-performance Arm® Cortex®-M4 32-bit RISC core, operating at frequencies up to 80 MHz. The Cortex-M4 core incorporates a single-precision floating-point unit (FPU), supporting all Arm® single-precision data processing instructions and data types.
Package: LQFP-100
Type: 32-bit Microcontroller - MCU
The STM32L451VET6 incorporates high-speed memory (up to 512 Kbyte flash and 160 Kbyte SRAM), a Quad SPI flash interface (available on all packages), and a large number of enhanced I/O and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.
STM32L451VET6 Specifications:
Series: STM32L4
Core Processor: ARM® Cortex®-M4
Core Specifications: 32-bit
Speed: 80MHz
I/O Count: 83
Program Memory Capacity: 512KB (512K x 8)
Program Memory Type: Flash
RAM Size: 160K x 8
Voltage - Supply (Vcc/Vdd): 1.71V to 3.6V
Data Converters: A/D 16x12b; D/A 1x12b
Oscillator Type: Internal
Operating Temperature: -40°C to 85°C (TA)
Mounting Type: Surface Mount
Supplier Device Package: 100-LQFP (14x14)
Package/Case: 100-LQFP
STM32L451VET6 Product Features:
Core: Arm® 32-bit Cortex®-M4 CPU with Floating-Point Unit (FPU), featuring Adaptive Real-Time Accelerator™ (ART™) for zero-wait-state execution from flash, operating at up to 80 MHz, incorporating MPU, delivering 100 DMIPS and DSP instruction set.
Supply voltage: 1.71 V to 3.6 V
– Operating temperature range: -40 °C to 85/125 °C
– VBAT mode power consumption: 145 nA (powering RTC and 32×32-bit backup registers)
– Shutdown mode power consumption: 22 nA (including 5 wake-up pins)
– Standby mode power consumption: 106 nA (including 5 wake-up pins)
Memory
– Up to 512 KB single-bank flash memory with proprietary code read protection
– 160 KB SRAM (including 32 KB hardware parity memory)
– Four-channel SPI memory interface
Performance Benchmarks
– 1.25 DMIPS/MHz (Drystone 2.1 test)
– 273.55 CoreMark® (3.42 CoreMark/MHz at 80 MHz)
Supports up to 83 high-speed I/O interfaces, most with 5V tolerance
The STM32L451VET6 is an ultra-low-power 80 MHz Arm Cortex-M4 MCU with FPU, featuring 512 KB Flash memory and DFSDM. It also incorporates standard and advanced communication interfaces including four I²C, three SPI, three USART, one UART and one low-power UART, one SAI, one SDMMC, and one CAN.
【Mingjiada Electronics】Offers immediate availability of ST (STM32L451VET6) 80MHz, 32-bit ARM® Cortex®-M4 STM32L4 microcontroller ICs. For further product details or pricing enquiries regarding the STM32L451VET6, please visit Mingjiada Electronics' official website (www.mjdic.com) to view supply information.
