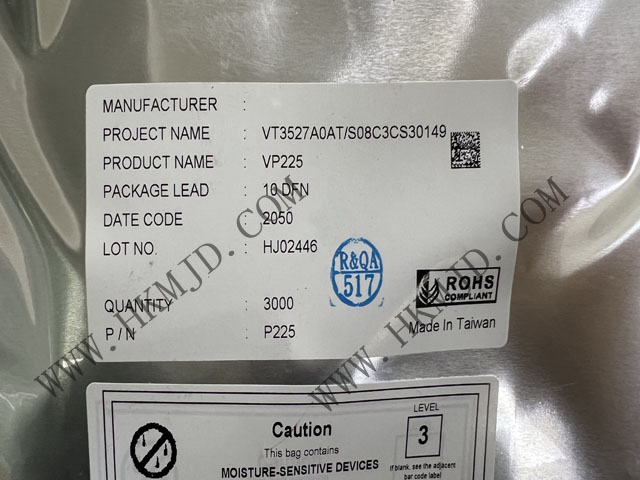

VIA Labs VP225 USB Type-C™ DFP CC Controller - Supplied by Mingjiada Electronics

The VIA Labs VP225 supplied by Mingjiada Electronics is a DFP CC controller specialising in USB Type-C interfaces. It primarily manages and controls critical communication and configuration tasks during Type-C interface connections.

Description

The VP225 is a USB Type-C DFP CC controller. This controller provides electrical measurement capabilities and supports the following Type-C CC controller features:

(1) Detecting USB Type-C port connection status

(2) Parsing cable orientation and twisted connections to establish USB data bus routing

(3) Establishing DFP and UFP role assignment between two connected ports

(4) Identifying and configuring VBUS: USB Type-C current modes

(5) Configuring VCONN

The PMODEx pin configures USB Type-C current modes, including default USB power delivery mode, 1.5A mode, and 3.0A mode.

Key Features

Compliant with USB Type-C Specification R1.1

Detects insertion/removal status of Type-C port

Provides Type-C cable orientation detection

Supports VBUS power capability selection

Supplies VBUS control signals

Delivers up to 1.5W power for VCONN applications

Integrated VCONN MOSFET power switch

VCONN thermal and short-circuit protection

Undervoltage lockout protection

Operating temperature range: -40°C to 85°C

Available in 10-pin DFN package

Compliant with lead-free (Pb) and RoHS standards
