[Supply NXP Transceiver] TJA1044T Mantis Series High-Speed CAN Transceiver
Product Details:
The TJA1044T is a Mantis series high-speed CAN transceiver featuring a standby mode, supporting data transfer rates up to 1 Mbit/s. It incorporates an ultra-low current standby mode with bus wake-up capability, delivering excellent electromagnetic compatibility even without a common-mode choke. Variants with a VIO pin permit direct connection to microcontrollers operating at supply voltages between 3.3V and 5V. Specifically designed for high-speed CAN applications in the automotive sector, the TJA1044T provides differential signal transmission and reception capabilities for the CAN protocol controller (residing within the microcontroller).
General Characteristics of the TJA1044T:
Ultra-low current standby mode with local and bus wake-up capability
Optimised for 12V automotive systems
Low electromagnetic emission (EME) and high electromagnetic immunity (EMI) capability, meeting proposed EMC standards such as IEC62228-3 and SAE J2962-2
AEC-Q100 qualified
Deep green product (halogen-free and RoHS compliant)
Models with VIO pins enable direct connection to microcontrollers operating at 3.3V to 5V.
Models without VIO pins can interface with microcontrollers powered at 3.3V (except TJA1044C) or 5V, provided the microcontroller's I/O tolerance voltage is 5V.
TJA1044T – Protections:
Bus pins feature high ESD handling capability (8kV IEC and HBM)
Transient protection on bus pins for automotive environments
Undervoltage detection on VCC pin
Over-temperature protection

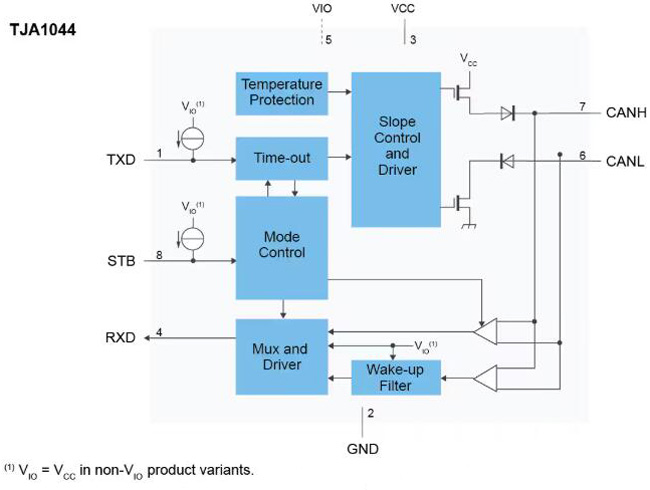

TJA1044T — Block Diagram:
[Mingjiada Electronics] stocks NXP (TJA1044T) Mantis series high-speed CAN transceivers. The TJA1044T delivers a feature set optimised for 12 V automotive applications, offering significant enhancements over NXP's first- and second-generation CAN transceivers (such as the TJA1040 and TJA1042), alongside outstanding electromagnetic compatibility (EMC) performance.
For further product information or pricing enquiries regarding the TJA1044T, please visit Mingjiada Electronics' official website (www.mjdic.com) to explore additional supply details.
