Within the electronic components sector, FPC/FFC connectors are extensively utilised across diverse electronic devices owing to their lightweight, slim profile and flexible characteristics. Leveraging extensive industry expertise and robust supply chain capabilities, Mingjiada Electronics now offers immediate availability of KYOCERA 046809630310846+ FPC/FFC connectors to our clientele.
The 046809630310846+ is suitable for applications in smartphones, tablets, laptops, audio equipment, and industrial devices.
The KYOCERA 046809630310846+ FPC/FFC connector features:
0.5mm pitch: Ideal for high-density circuit designs, enabling greater functionality within limited space.
30-pin configuration: Provides ample connection channels to meet diverse complex circuit interconnection requirements.
RA flip-lock mechanism: Features a uniquely designed flip-lock to ensure stable and reliable connections, maintaining excellent contact even in vibrating or impact-prone environments.
ZIF gold fingers: Zero Insertion Force (ZIF) design facilitates smooth insertion and removal of FPC/FFC. The gold fingers' high conductivity and corrosion resistance guarantee stable signal transmission and long-term reliability.
Key Product Specifications:

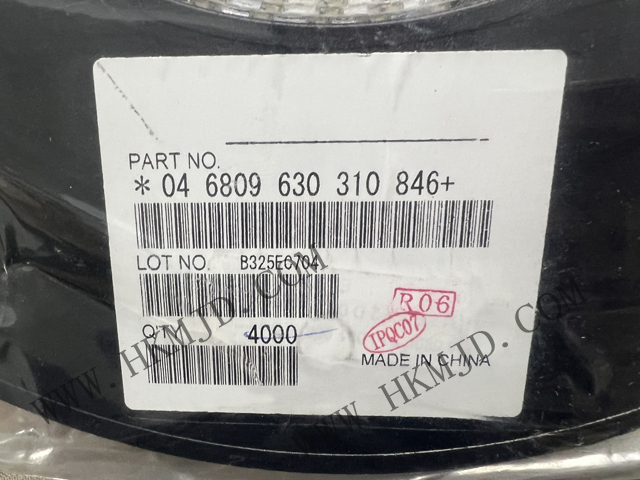

Manufacturer/Model: KYOCERA / 046809630310846+
Product Series: 6809 Series FFC, FPC (Flat Flexible) Connectors
Pin Count: 30 POS
Pitch: 0.5mm (0.020")
Mounting Method: Surface Mount Technology (SMT), Right Angle
Connector Type: Bottom Contact
Locking Method: Front-flip Trigger Lock
Insertion Force Type: Zero Insertion Force (ZIF)
Suitable FPC/FFC: 0.3mm Thickness
Board Height: 0.95mm (0.037")
Contact Material: Copper Alloy
Contact Surface Finish: Gold Plated
Rated Voltage: 50V
Rated Current: 0.5A
Operating Temperature: -40°C to 85°C
