[TI] RS-232 Transceiver——Original SN65C3232PWR RS-232 Line Driver/Receiver
Product Details:
Package: TSSOP-16
Type: RS-232 Transceiver

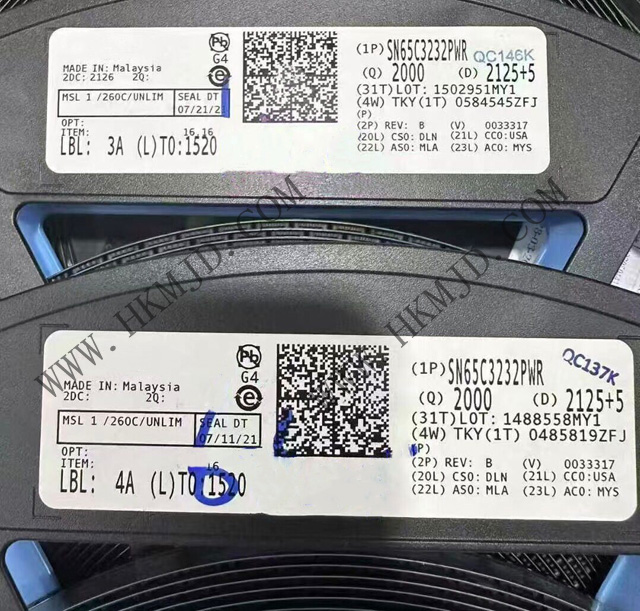

SN65C3232PWR — Product Image:
The SN65C3232PWR comprises two line drivers, two line receivers, and a dual charge pump circuit, featuring pin-to-pin (serial port connection pins, including GND) ±15kV ESD protection. It provides an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors support operation from a single 3V to 5.5V supply. The SN65C3232PWR operates at typical data signal transfer rates up to 1Mbit/s, with driver output slew rates ranging from 24V/µs to 150V/µs.
SN65C3232PWR Specifications:
Type: Transceiver
Protocol: RS232
Number of Drivers/Receivers: 2/2
Duplex: Full-duplex
Receiver Hysteresis: 300 mV
Data Rate: 1 Mbps
Voltage - Supply: 3V to 5.5V
Operating Temperature: -40°C to 85°C
Mounting Type: Surface Mount
Package/Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
SN65C3232PWR Product Features:
Powered by 3V to 5.5V VCC supply
Data rates up to 1Mbit/s
Low supply current: 300µA (typical)
External capacitors: 4 × 0.1µF
Accepts 5V logic inputs and 3.3V supply
RS-232 bus pins with ESD protection exceeding ±15kV Human Body Model (HBM)
SN65C3232PWR Applications:
Industrial PCs
Wired networks
Data centres and enterprise computing
Battery-powered systems
Laptops
Notebooks
Palmtop computers
Handheld devices
【Mingjiada Electronics】offers long-term stock availability of TI's (SN65C3232PWR) dual-channel RS-232 line driver/receiver. For further product information regarding the SN65C3232PWR, please contact Mingjiada Electronics:
