Shenzhen Mingjiada Electronics (Supply) ams OSRAM AS5145A-HSSM is a non-contact rotating position magnetic position sensor
Description
The AS5145A-HSSM is a non-contact rotating position magnetic position sensor that can achieve precise Angle measurement within a 360° range within an extended ambient temperature range of -40 ° C to +150 ° C. The AS5145A-HSSM can output real-time absolute Angle information through the SSI serial interface and PWM signal, with a resolution of 0.0879°= 4096 positions per revolution. The incremental ABI output interface can be pre-programmed as 10 bits =1024 positions.
Features and advantages of AS5145A-HSSM
High-resolution non-contact 360° full-range rotation position sensing
Simple user-programmable zero position and Settings
Serial communication interface (SSI), 10-bit pulse width modulation (PWM) output, ABI output interface
The rotational speed can reach up to 30,000 rpm
The fault monitoring mode can monitor the position of the magnet and power failure
Serial reading function, suitable for multiple AS5145 devices interconnected by daisy chain
It features outstanding reliability and durability
Simple programming
Multiple interfaces can be provided
Suitable for motor applications
Supports fault diagnosis function
Easy to set up
AS5145A-HSSM specification
Type: 12-bit Rotary
Working power supply voltage: 5V
Installation style: SMD/SMT
Packaging/Cabinet: SSOP-16
Series: AS5145A-HSSM
Packaging: Reel
Encapsulation: Cut Tape
Trademark: ams OSRAM
Humidity sensitivity: Yes
Output type: Quadrature
Product type: Board Mount Hall Effect/Magnetic Sensors
Resolution: 1024 PPR
Application scenarios
The AS5145A-HSSM sensor is mainly used in fields such as motor control, industrial robots, and automotive electronics that require high-precision Angle measurement.

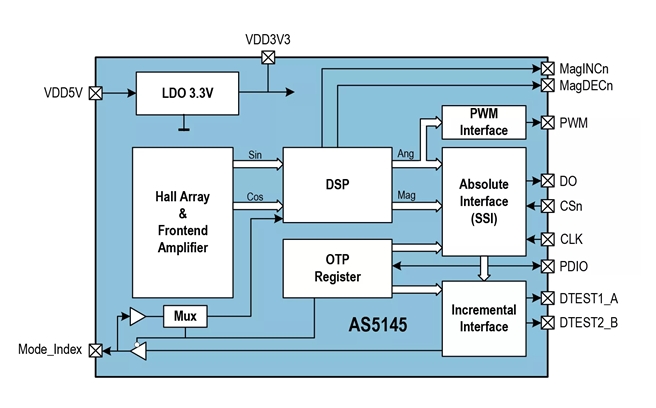

Block diagram of AS5145A-HSSM
